Vandal Resistant Off-(On) Momentary 19mm Ultra Short Switch SPST
by Langir
SKU 482550
MPN: L19U-FMS
Availability:
24 in stock
Original price
£7.50
-
Original price
£7.50
Original price
£7.50
Inc VAT
£7.50
-
£7.50
Current price
£7.50
Inc VAT

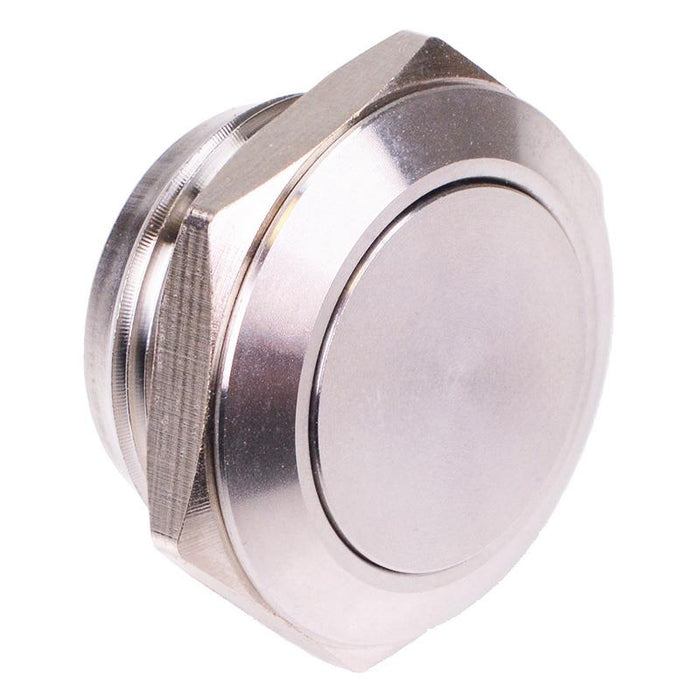

Short body anti vandal momentary push button switch manfuactured from stainless steel, featuring NO / NC contacts. The switch requires a 19mm panel cut-out making it suitable for applications with limited space behind the panel.

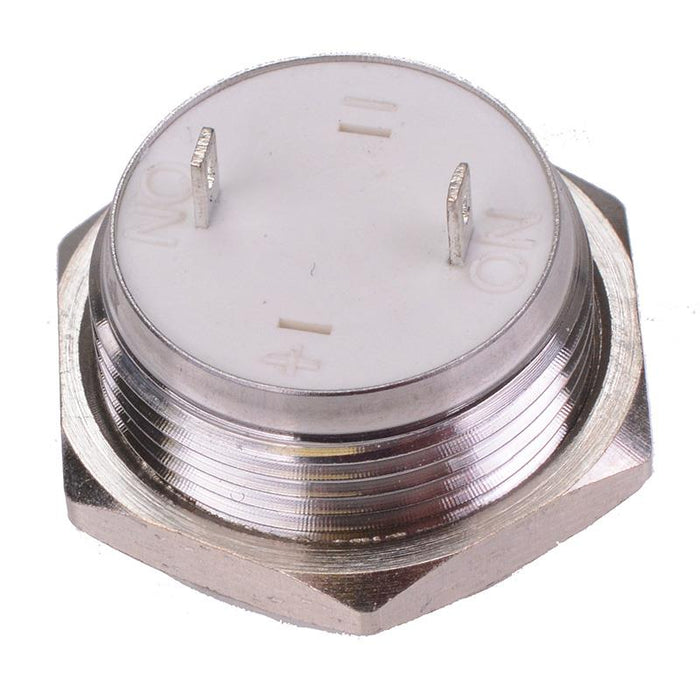

Momentary switch action SPST-NO contacts Panel cut-out: 19mm Maximum panel thickness: 3mm Rating: 50mA 24VDC Protection rating: IP67 Solder terminals Dimensions: 14.1 x 22mm (Length x Diameter)
Specification
| Actuation | Momentary |
| Back order lead time | 45 Days |
| Contact configuration | SPST |
| Contact rating | 0.05A 24VDC |
| Current rating | 0.05A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 19mm |
| Panel thickness | 1.0-3.0mm |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Solder |
| Voltage rating | 24VDC |
