Vandal Resistant Off-(On) Momentary 22mm Short Push Button Switch SPST
by Langir
SKU 482553
MPN: L22U-FMS
Availability:
16 in stock
Original price
£6.54
-
Original price
£6.54
Original price
£6.54
£6.54
£6.54
-
£6.54
Current price
£6.54

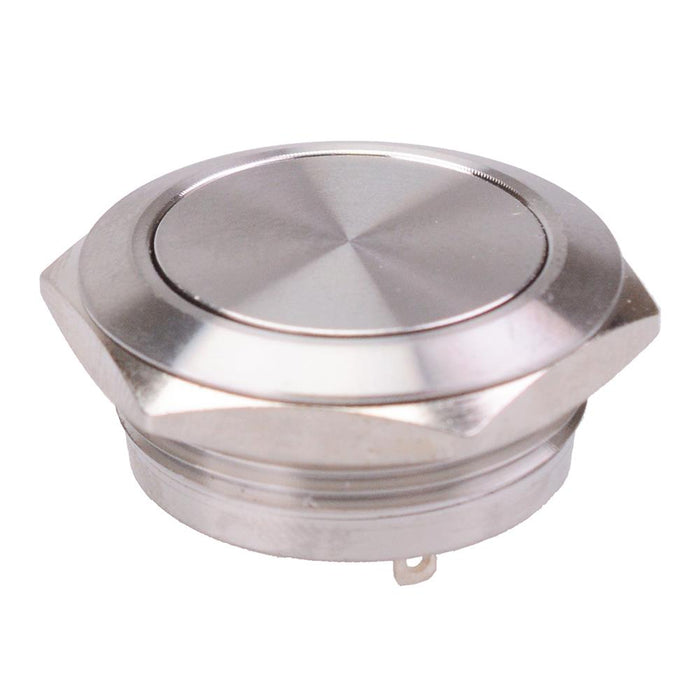

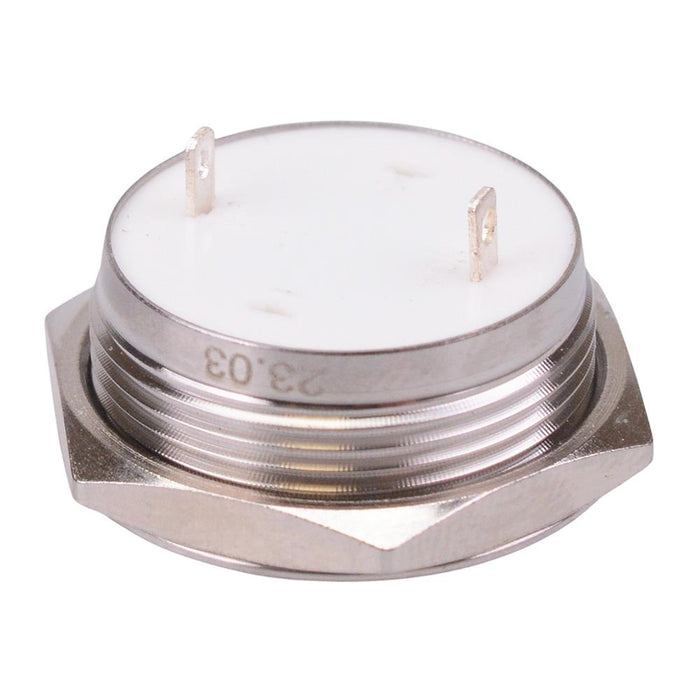

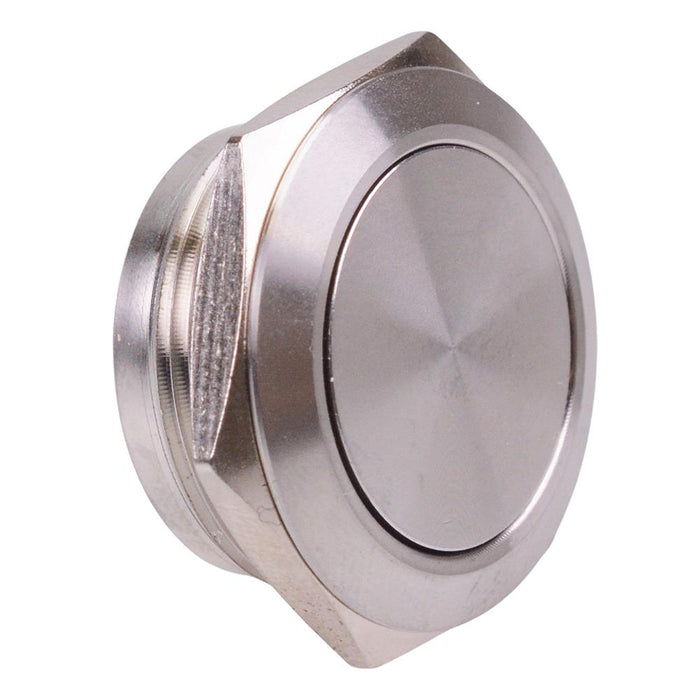

Short body anti vandal momentary push button switch manfuactured from stainless steel, featuring NO / NC contacts. The switch requires a 22mm panel cut-out making it suitable for applications with limited space behind the panel.
Momentary switch action SPST-NO contacts Panel cut-out: 22mm Maximum panel thickness: 3mm Rating: 50mA 24VDC Protection rating: IP67 Solder terminals Dimensions: 14.1 x 25mm (Length x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Contact Configuration | SPST |
| Contact Rating | 0.05A 24VDC |
| Current Rating | 0.05A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 22mm |
| Panel Thickness | 1.0-3.0mm |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
