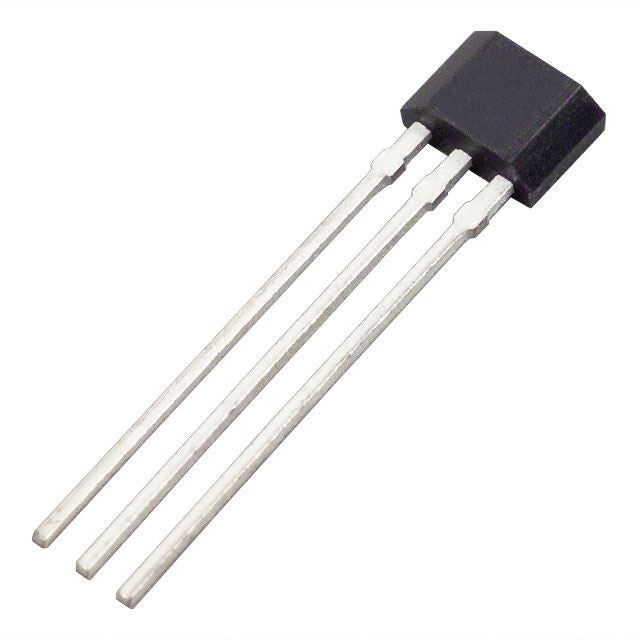

VN10LP MOSFET 60V 270mA N Channel TO-92 Transistor
by Diodes Zetex
SKU 551630
MPN: VN10LP
Availability:
100 in stock
Original price
£2.25
-
Original price
£2.25
Original price
£2.25
Inc VAT
£2.25
-
£2.25
Current price
£2.25
Inc VAT
The VN10LP MOSFET Transistor is a 60V N-channel through hole resistor supplied in TO-92 packaging. For further technical specifications please refer to the attached datasheet.
- BVDSS >60V
- RDS(on) < 5Ohm at VGS = 10V
- ID = 270mA Maximum Continuous Drain Current
- Totally Lead Free and Fully RoHS Compliant
- MOSFET 60V 270mA TO-92
Specification
| Back order lead time | 5 Days |
| Continuous drain current | 0.27A |
| Drain source on resistance | 5Ω |
| Drain source voltage | 60V |
| Input capacitance | 60pF |
| Maximum gate source voltage | 2.5V |
| Maximum operating temperature | 150°C |
| Mounting type | Through Hole |
| Package | TO92 |
| Power dissipation | 0.625W |
| Type | N-Channel |
