VTX-101-001 PCB Audio Transformer Vigortronix
by Vigortronix
SKU 480222
MPN: VTX-101-001
Availability:
Only 4 left!
Original price
£8.74
-
Original price
£8.74
Original price
£8.74
Inc VAT
£8.74
-
£8.74
Current price
£8.74
Inc VAT

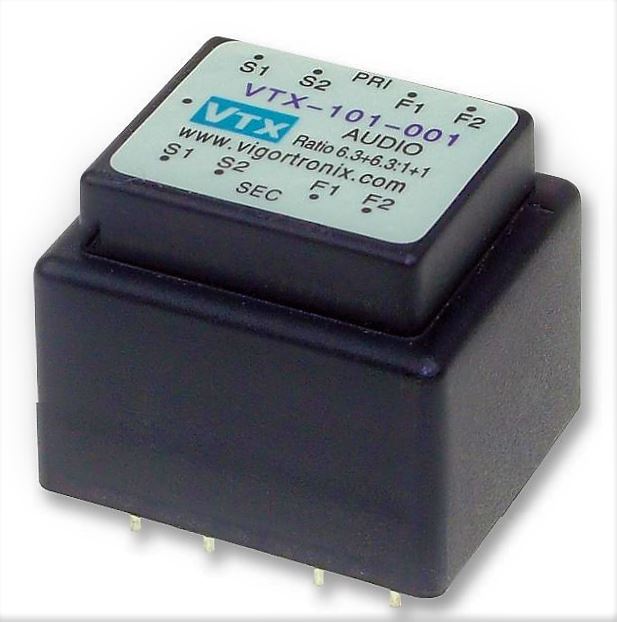

The VTX-101-001 is a high quality transformer manufactured by Vigortronix offering excellent band width and low distortion making it suitable for a wide range of audio applications.
Encapsulated PCB mounting PCB mounting Ratio: 6.3+6.3 : 1+1 Less than 1% THD 30 to 35kHz frequency range Pin pitch: 2.54mm
Specification
| Back order lead time | 5 Days |
| Frequency range | 30-30KHz |
| Isolation voltage | 1KVac |
| Primary impedance | 150Ω + 150Ω |
| Ratio | 6.3+6.3 : 1+1 |
