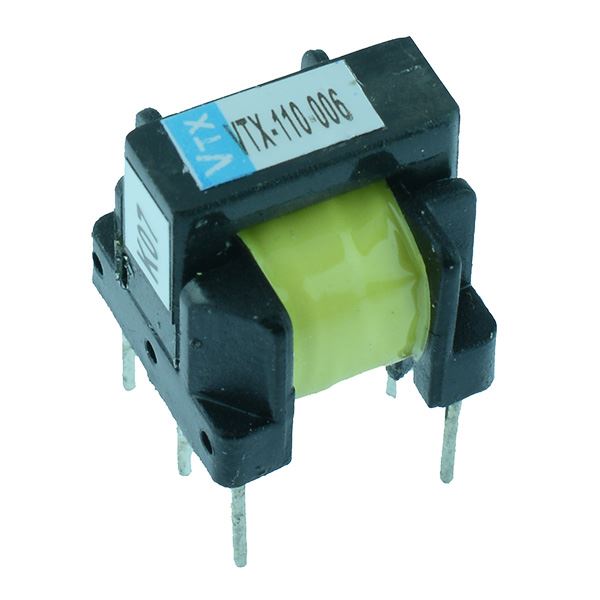

VTX-110-006 Open PCB Pulse Transformer 1:1+1 Vigortronix
by Vigortronix
SKU 480276
MPN: VTX-110-006
Availability:
7 in stock
Original price
£1.68
-
Original price
£1.68
Original price
£1.68
£1.68
£1.68
-
£1.68
Current price
£1.68
The VTX-110-006 is a high quality pulse transformer featuring an open PCB mounting design, suitable for general pulse and wide bank applications including use with thyristor control systems.
Ratio: 1:1+1 Maximum pulse current: 200mA (peak) Isolation voltage: 2.8KVac
Specification
| Back Order Lead Time | 7 |
| ET Constant | 200Vµs |
| Height | 14mm |
| Isolation Voltage | 2.8KVac |
| Length | 13mm |
| MOQ | 1 |
| Primary Impedance | 1.32Ω |
| Primary Inductance | 3mH |
| Ratio | 1:1+1 |
| Width | 13mm |
