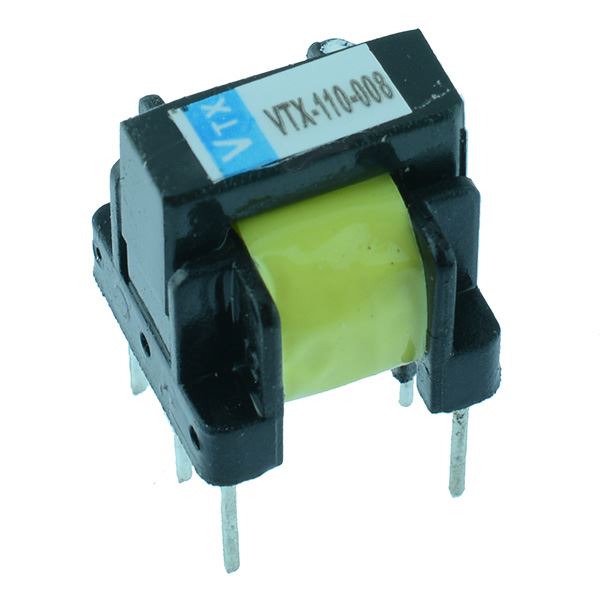

VTX-110-008 Open PCB Pulse Transformer 2:1+1 Vigortronix

VTX-110-008 Open PCB Pulse Transformer 2:1+1 Vigortronix

by Vigortronix
SKU 480277

MPN: VTX-110-008

Availability:
Only 2 left!
£1.87 - £1.87
£1.87
£1.87
£1.87 - £1.87
£1.87
The VTX-110-008 is a high quality pulse transformer featuring an open PCB mounting design, suitable for general pulse and wide bank applications including use with thyristor control systems.

  • Ratio: 2:1+1
  • Maximum pulse current: 200mA (peak)
  • Isolation voltage: 2.8KVac
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 7
    ET Constant 200Vµs
    Height 14mm
    Isolation Voltage 2.8KVac
    Length 13mm
    MOQ 1
    Primary Impedance 3.36Ω
    Primary Inductance 12mH
    Ratio 2:1+1
    Width 13mm
