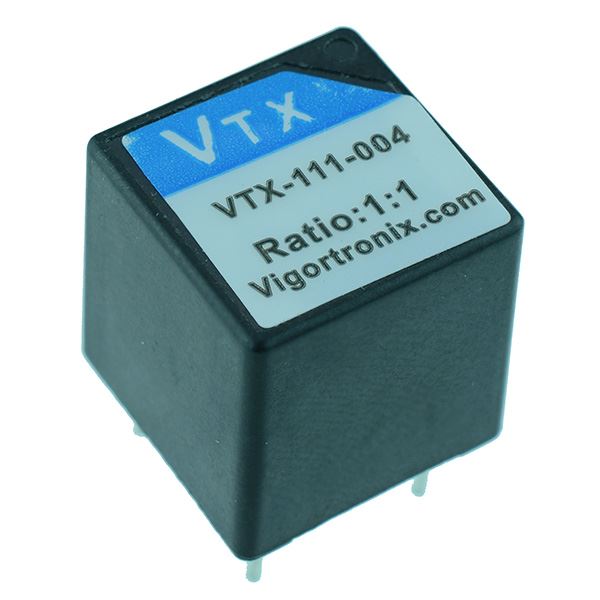

VTX-111-004 PCB Pulse Transformer 1:1 Vigortronix

VTX-111-004 PCB Pulse Transformer 1:1 Vigortronix

by Vigortronix
SKU 480278

MPN: VTX-111-004

Availability:
Only 5 left!
£1.68 - £1.68
£1.68
£1.68
£1.68 - £1.68
£1.68
The VTX-111-004 is a high quality pulse transformer featuring encapsulated PCB mounting, designed for wide band and general pulse applications including triac and thyristor control systems.

  • Ratio: 1:1
  • Maximum pulse current: 200mA (Peak)
  • Isolation voltage: 2.8KVac
    • Download Product Data Sheet PDF
    Specification
    Back Order Lead Time 7
    ET Constant 200Vµs
    Height 15.5mm
    Isolation Voltage 2.8KVac
    Length 15mm
    MOQ 1
    Primary Impedance 1.1Ω
    Primary Inductance 3mH
    Ratio 1:01
    Width 15mm
    Request a quote
