VTX-111-008 PCB Pulse Transformer 2:1+1 Vigortronix
by Vigortronix
SKU 480280
MPN: VTX-111-008
Availability:
9 in stock
Original price
£1.98
-
Original price
£1.98
Original price
£1.98
Inc VAT
£1.98
-
£1.98
Current price
£1.98
Inc VAT

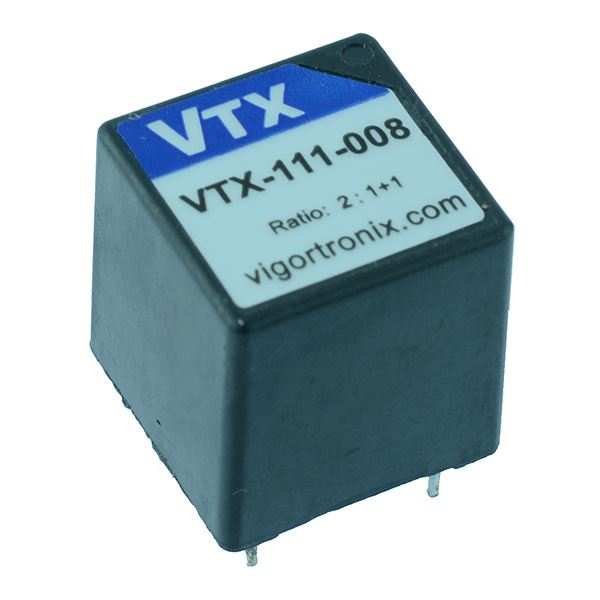

The VTX-111-008 is a high quality pulse transformer featuring encapsulated PCB mounting, designed for wide band and general pulse applications including triac and thyristor control systems.
Ratio: 2:1+1 Maximum pulse current: 200mA (Peak) Isolation voltage: 2.8KVac
Specification
| Back order lead time | 5 Days |
| Et constant | 200Vµs |
| Height | 15.5mm |
| Isolation voltage | 2.8KVac |
| Length | 15mm |
| Primary impedance | 3.36Ω |
| Primary inductance | 12mH |
| Ratio | 2:1+1 |
| Width | 15mm |
