VTX-120-5412-209 PCB Transformer 230V 12VA 9V+9V Vigortronix
by Vigortronix
SKU 480269
MPN: VTX-120-5412-209
Availability:
Out of stock
Sold out
Original price
£9.40
-
Original price
£9.40
Original price
£9.40
Inc VAT
£9.40
-
£9.40
Current price
£9.40
Inc VAT

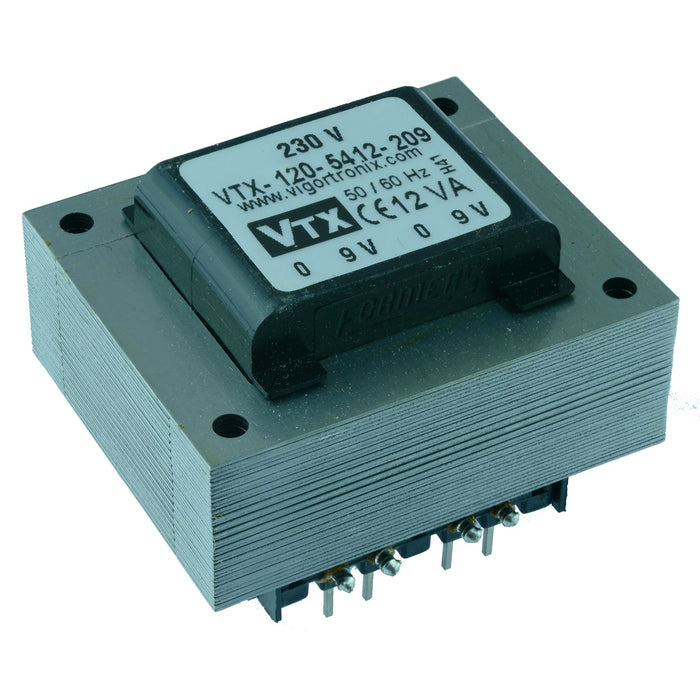

The VTX-120-5412-209 is a high quality PCB mount transformer featuring a single 230V primary winding and 9V twin secondary winding. The transformer features 12VA power and is suitable for 50/60Hz applications.
Primary winding: 230V Secondary winding: 9V+9V Power: 12VA 50/60Hz UL94-V0 material Temperature Class: - Class B (130°C) Dielectric strength: 4200Vrms Manufactured and tested in accordance to EN61558, EN60950, CE
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 4200Vrms |
| Height | 39mm |
| Length | 54mm |
| Output current | 0.67A |
| Power | 12VA |
| Primary voltage | 230VAC |
| Secondary voltage | 9V+9V |
| Weight | 340g |
| Width | 45mm |
