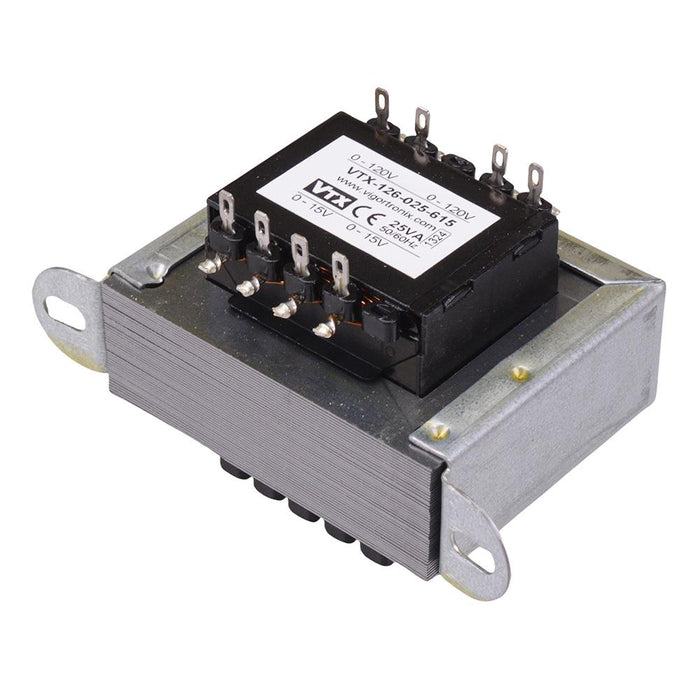

VTX-126-025-615 Chassis Mount Transformer 240V 25VA 15V+15V Vigortronix

SKU 488551

MPN: VTX-126-025-615

Availability:
50 in stock
Original price £23.50 - Original price £23.50
Original price
£23.50
£23.50 - £23.50
Current price £23.50
The VTX-126-025-615 is a high quality chassis mount transformer featuring a twin 120V primary winding and 15V twin secondary winding. The transformer features 25VA power and can be connected in series or parallel.

  • Double section metric bobbins
  • Primary winding: 2 x 120VAC
  • Secondary winding: 15V+15V
  • Power: 25VA
  • Dielectric strength: 3750Vrms
  • Manufactured and tested in accordance to EN61558, EN60950, CE
  • Specification
    Back Order Lead Time 5 Days
    Height 53mm
    Length 69mm
    MOQ 1
    Output Current 0.83A
    Power 25VA
    Primary Voltage 2 x 120V
    Secondary Voltage 2 x 15V
    Weight 675g
    Width 58mm
