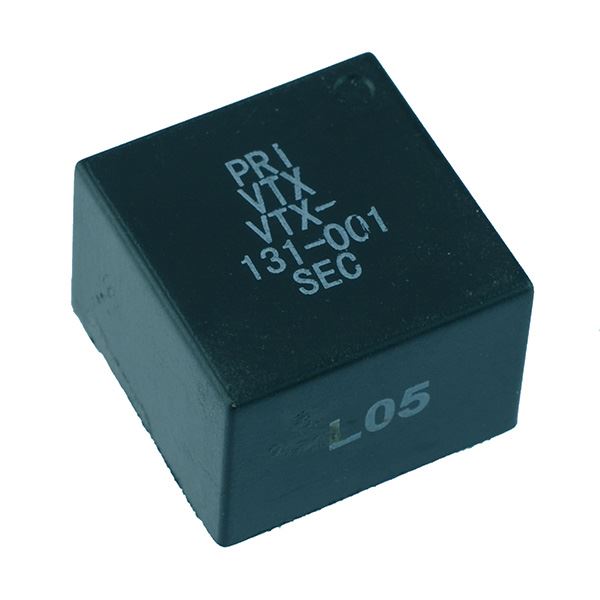

The VTX-131-001 is a line isolation transformer featuring a low profile design suitable for PCB SMT audio applications.
Turns ratio: 1:1 Impedance line matching 600:600 ohm
Specification
| Back order lead time | 5 Days |
| Dielectric strength | 3700Vrms |
| Frequency range | 200Hz-4000Hz |
| Insertion loss | 1.5dB Max @ 2kHz |
| Primary dc resistance | 68Ω |
| Ratio | 1 : 1 |
| Return loss | -20dB Min @ 200Hz-4kHz |
