VTX-146-015-206 Toroidal Transformer 15VA 0-6V Vigortronix
by Vigortronix
SKU 487157
MPN: VTX-146-015-206
Availability:
10 in stock
Original price
£15.33
-
Original price
£15.33
Original price
£15.33
£15.33
-
£15.33
Current price
£15.33

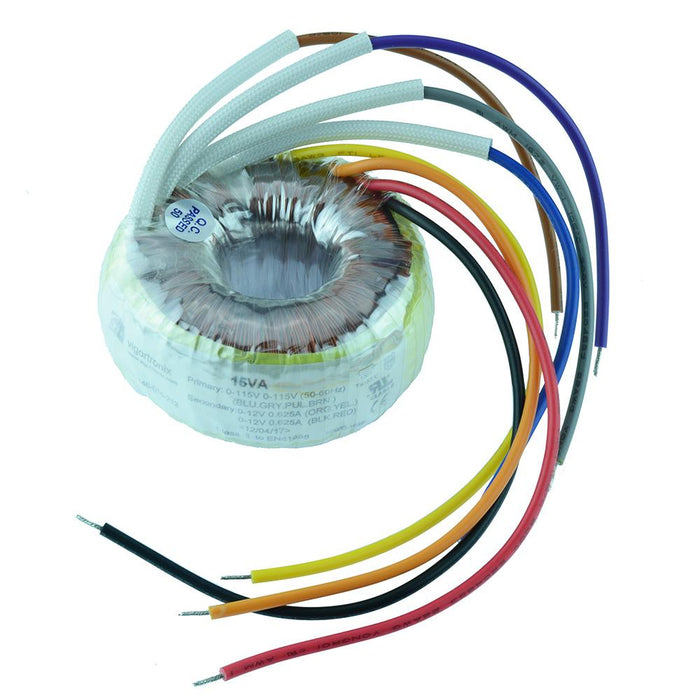

The VTX-146-015-206 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.
Dual primary winding: 115V+115V Dual secondary winding: 0-6V 0-6V Power: 15VA Supplied with mounting kit Dimensions: 33 x 65mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 65mm |
| Height | 33mm |
| Output Current | 1.25A |
| Power | 15VA |
| Primary Voltage | 2 x 115V |
| Regulation | 16% |
| Secondary Voltage | 2 x 6V |
| Weight | 330g |
