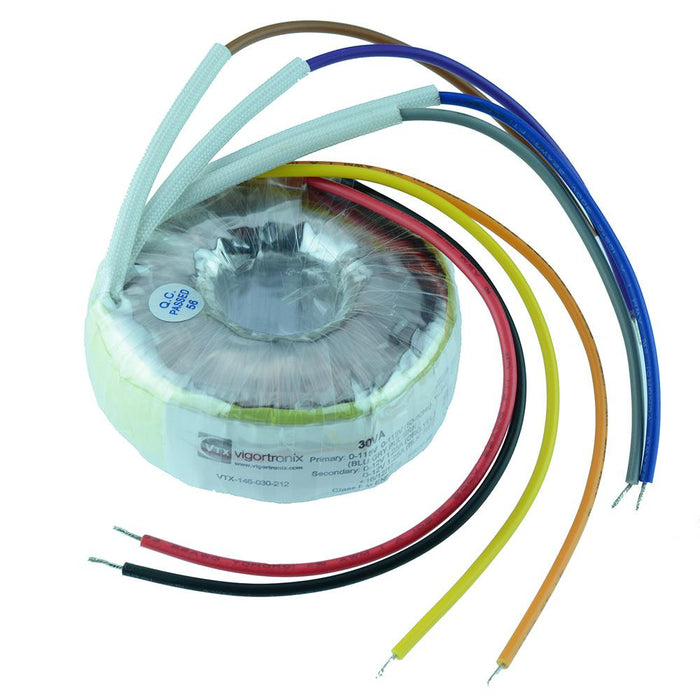

VTX-146-030-224 Toroidal Transformer 30VA 0-24V Vigortronix
by Vigortronix
SKU 487166
MPN: VTX-146-030-224
Availability:
Only 3 left!
Original price
£18.61
-
Original price
£18.61
Original price
£18.61
£18.61
-
£18.61
Current price
£18.61
The VTX-146-030-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.
Dual primary winding: 115V+115V Dual secondary winding: 0-24V 0-24V Power: 30VA Supplied with mounting kit Dimensions: 33 x 74mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 74mm |
| Height | 33mm |
| Output Current | 0.625A |
| Power | 30VA |
| Primary Voltage | 2 x 115V |
| Regulation | 14% |
| Secondary Voltage | 2 x 24V |
| Weight | 450g |
