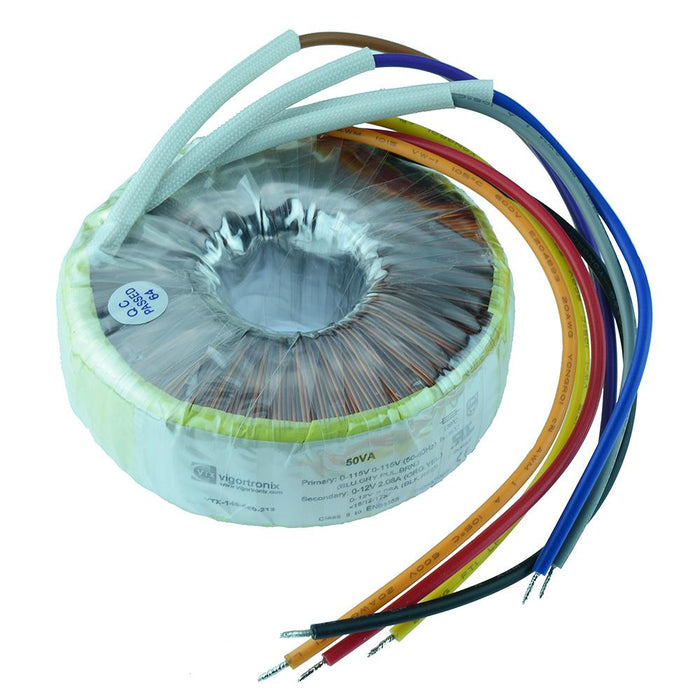

VTX-146-050-224 Toroidal Transformer 50VA 0-24V Vigortronix
by Vigortronix
SKU 487171
MPN: VTX-146-050-224
Availability:
Only 4 left!
Original price
£18.29
-
Original price
£18.29
Original price
£18.29
£18.29
-
£18.29
Current price
£18.29
The VTX-146-050-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.
Dual primary winding: 115V+115V Dual secondary winding: 0-24V 0-24V Power: 50VA Supplied with mounting kit Dimensions: 33 x 82mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
Specification
Back Order Lead Time | 5 Days |
Diameter | 82mm |
Height | 33mm |
Output Current | 1.05A |
Power | 50VA |
Primary Voltage | 2 x 115V |
Regulation | 14% |
Secondary Voltage | 2 x 24V |
Weight | 600g |
