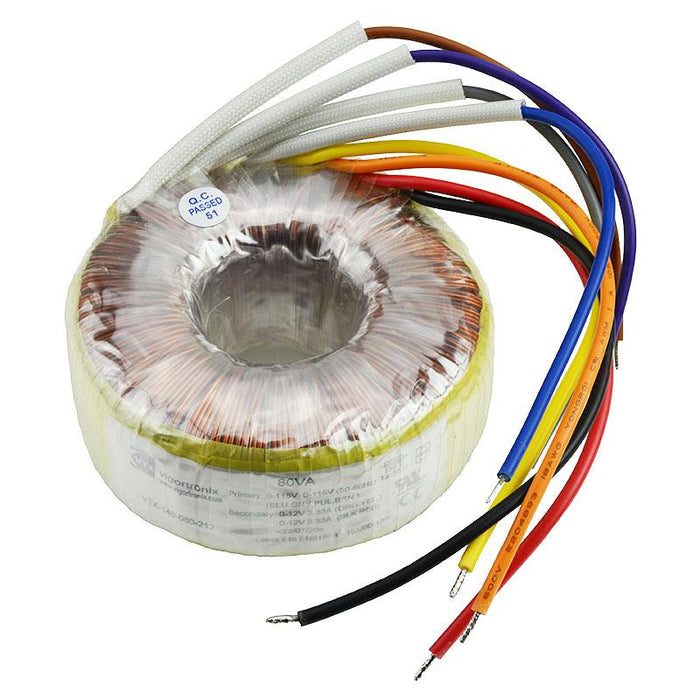

VTX-146-080-212 Toroidal Transformer 80VA 0-12V Vigortronix
by Vigortronix
SKU 480284
MPN: VTX-146-080-212
Availability:
Only 3 left!
Save 5%
Original price
£26.03
Original price
£26.03
-
Original price
£26.03
Original price
£26.03
Current price
£24.60
£24.60
-
£24.60
Current price
£24.60
The VTX-146-080-212 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field.
Dual primary winding: 115V+115V Dual secondary winding: 0-12V 0-12V Power: 80VA Supplied with mounting kit Dimensions: 39 x 90mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL and CE
Specification
| Back Order Lead Time | 5 Days |
| Diameter | 90mm |
| Height | 39mm |
| Output Current | 3.33A |
| Power | 80VA |
| Primary Voltage | 2 x 115V |
| Regulation | 11% |
| Secondary Voltage | 2 x 12V |
| Weight | 1000g |
