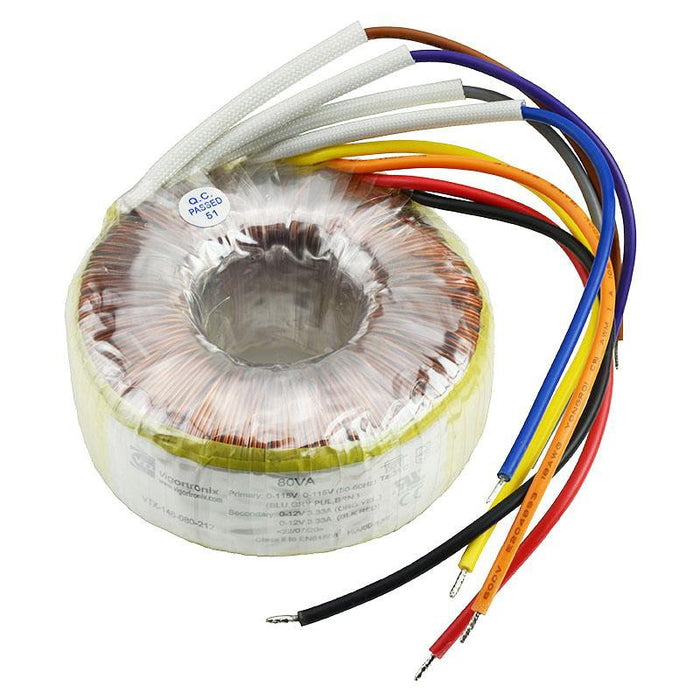

VTX-146-080-218 Toroidal Transformer 80VA 0-18V Vigortronix

The VTX-146-080-218 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

Dual primary winding: 115V+115V

Dual secondary winding: 0-18V 0-18V

Power: 80VA

Supplied with mounting kit

Dimensions: 40 x 90mm (Height x Diameter)

Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
