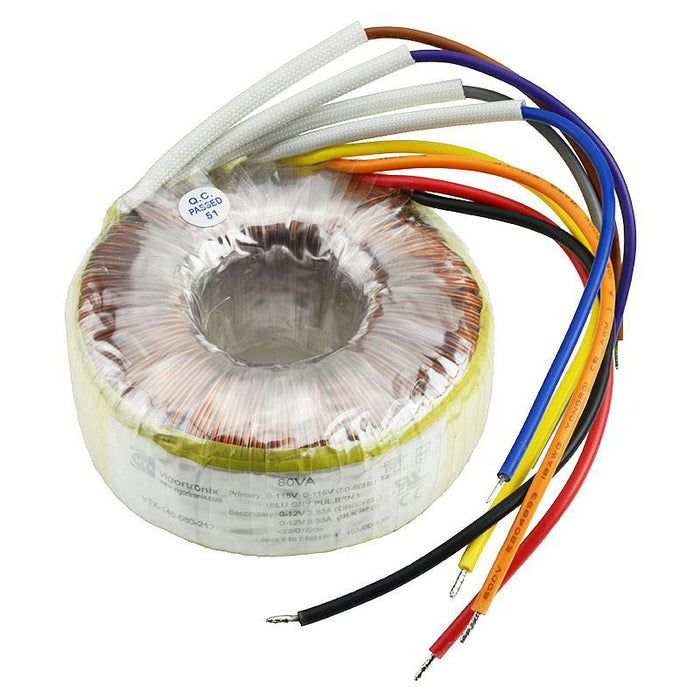

VTX-146-080-224 Toroidal Transformer 80VA 0-24V Vigortronix

SKU 487176

MPN: VTX-146-080-224

Availability:
12 in stock
Original price £24.07 - Original price £24.07
Original price
£24.07
£24.07 - £24.07
Current price £24.07
The VTX-146-080-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-24V 0-24V
  • Power: 80VA
  • Supplied with mounting kit
  • Dimensions: 40 x 90mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Back Order Lead Time 5 Days
    Diameter 90mm
    Height 40mm
    Output Current 1.66A
    Power 80VA
    Primary Voltage 2 x 115V
    Regulation 11%
    Secondary Voltage 2 x 24V
    Weight 1000g
