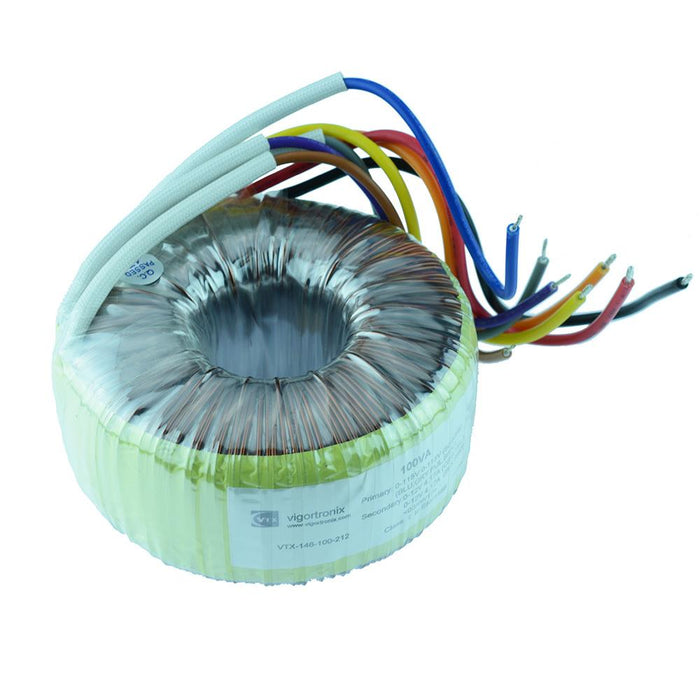

VTX-146-100-209 Toroidal Transformer 100VA 0-9V Vigortronix

SKU 487178

MPN: VTX-146-100-209

Availability:
9 in stock
Original price £24.98 - Original price £24.98
Original price
£24.98
£24.98 - £24.98
Current price £24.98
The VTX-146-100-209 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-9V 0-9V
  • Power: 100VA
  • Supplied with mounting kit
  • Dimensions: 45 x 91mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Back Order Lead Time 5 Days
    Diameter 91mm
    Height 45mm
    Output Current 5.55A
    Power 100VA
    Primary Voltage 2 x 115V
    Regulation 11%
    Secondary Voltage 2 x 9V
    Weight 1200g
