VTX-146-120-212 Toroidal Transformer 120VA 0-12V Vigortronix
by Vigortronix
SKU 480286
MPN: VTX-146-120-212
Availability:
6 in stock
Original price
£25.67
-
Original price
£25.67
Original price
£25.67
Inc VAT
£25.67
-
£25.67
Current price
£25.67
Inc VAT

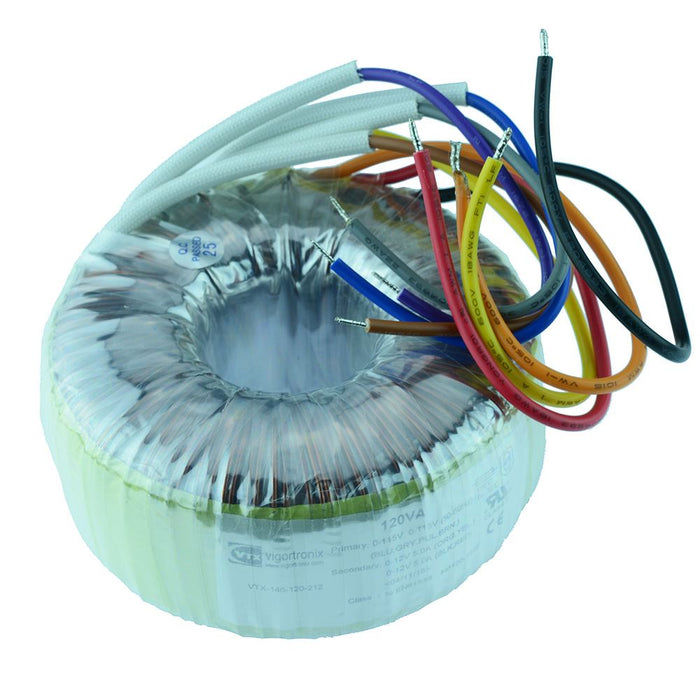

The VTX-146-120-212 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field.
Dual primary winding: 115V+115V Dual secondary winding: 0-12V 0-12V Power: 120VA Supplied with mounting kit Dimensions: 45 x 98mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL and CE
Specification
| Back order lead time | 5 Days |
| Diameter | 98mm |
| Height | 45mm |
| Output current | 5A |
| Power | 120VA |
| Primary voltage | 2 x 115V |
| Regulation | 10% |
| Secondary voltage | 2 x 12V |
| Weight | 1320g |
