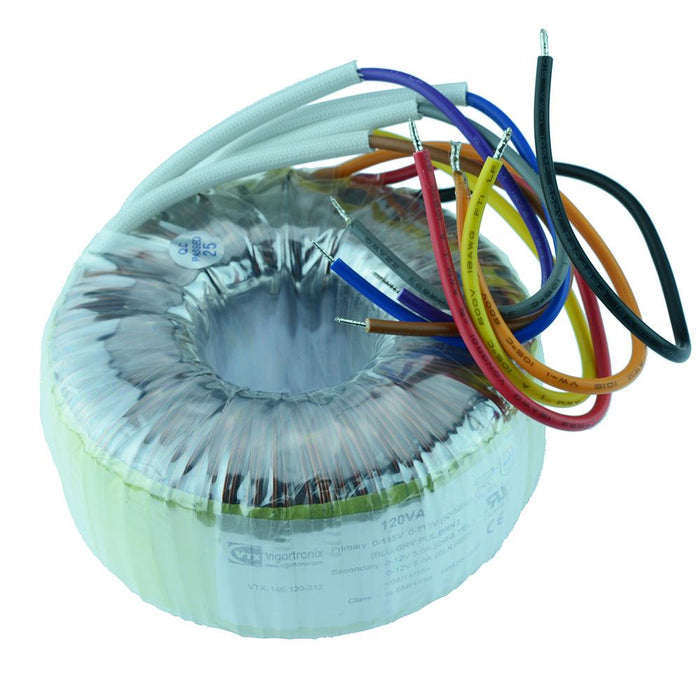

VTX-146-120-215 Toroidal Transformer 120VA 0-15V Vigortronix
by Vigortronix
SKU 487184
MPN: VTX-146-120-215
Availability:
Only 4 left!
Original price
£23.10
-
Original price
£23.10
Original price
£23.10
£23.10
-
£23.10
Current price
£23.10
The VTX-146-120-215 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.
Dual primary winding: 115V+115V Dual secondary winding: 0-15V 0-15V Power: 120VA Supplied with mounting kit Dimensions: 45 x 98mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
Specification
Back Order Lead Time | 5 Days |
Diameter | 98mm |
Height | 45mm |
Output Current | 4A |
Power | 120VA |
Primary Voltage | 2 x 115V |
Regulation | 10% |
Secondary Voltage | 2 x 15V |
Weight | 1320g |
