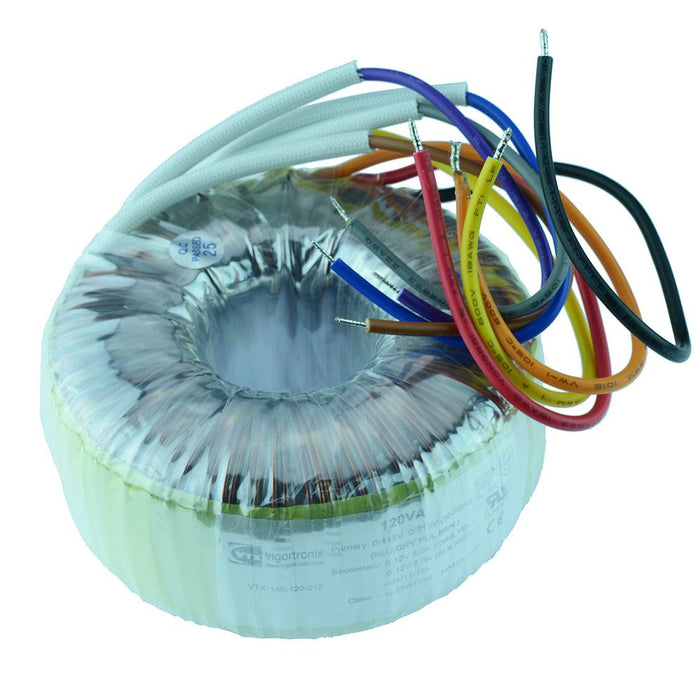

VTX-146-120-224 Toroidal Transformer 120VA 0-24V Vigortronix

The VTX-146-120-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

Dual primary winding: 115V+115V

Dual secondary winding: 0-24V 0-24V

Power: 120VA

Supplied with mounting kit

Dimensions: 45 x 98mm (Height x Diameter)

Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
