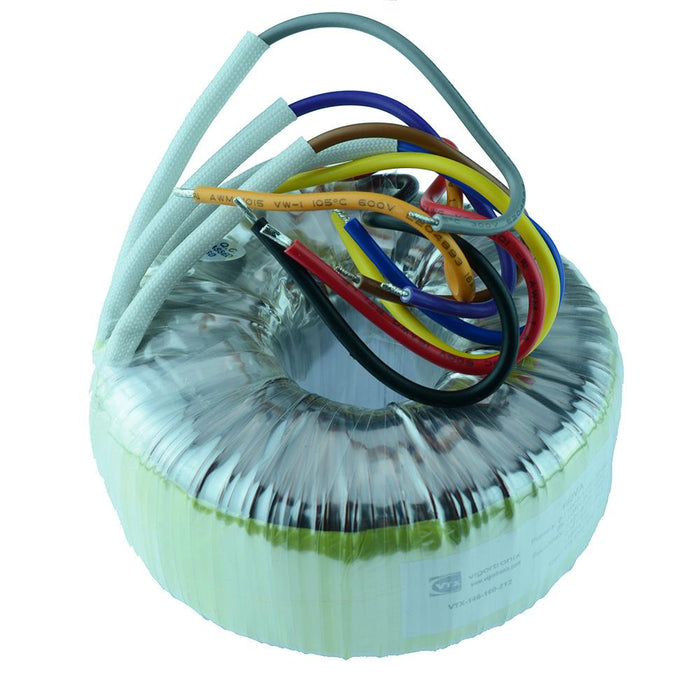

VTX-146-160-209 Toroidal Transformer 160VA 0-9V Vigortronix

SKU 487188

MPN: VTX-146-160-209

Availability:
Out of stock
Sold out
Original price £28.61 - Original price £28.61
Original price
£28.61
£28.61 - £28.61
Current price £28.61
The VTX-146-160-209 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-9V 0-9V
  • Power: 160VA
  • Supplied with mounting kit
  • Dimensions: 47 x 105mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Back Order Lead Time 5 Days
    Diameter 105mm
    Height 47mm
    Output Current 8.88A
    Power 160VA
    Primary Voltage 2 x 115V
    Regulation 8%
    Secondary Voltage 2 x 9V
    Weight 1600g
