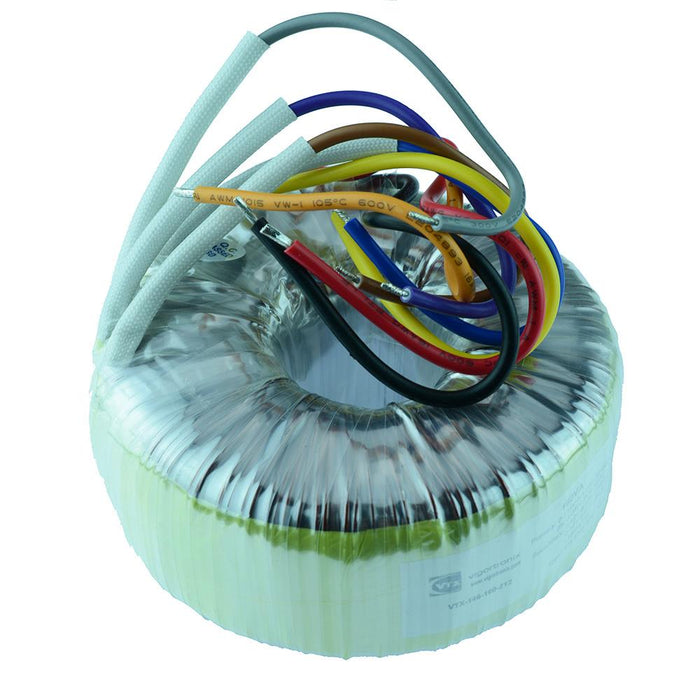

VTX-146-160-218 Toroidal Transformer 160VA 0-18V Vigortronix

SKU 487190

MPN: VTX-146-160-218

Only 3 left!
Original price £26.71 - Original price £26.71
Original price
£26.71 Inc VAT
£26.71 - £26.71
Current price £26.71 Inc VAT
The VTX-146-160-218 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-18V 0-18V
  • Power: 160VA
  • Supplied with mounting kit
  • Dimensions: 47 x 105mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Diameter 105mm
    Height 47mm
    Output current 4.44A
    Power 160VA
    Primary voltage 2 x 115V
    Regulation 8%
    Secondary voltage 2 x 18V
    Weight 1600g
