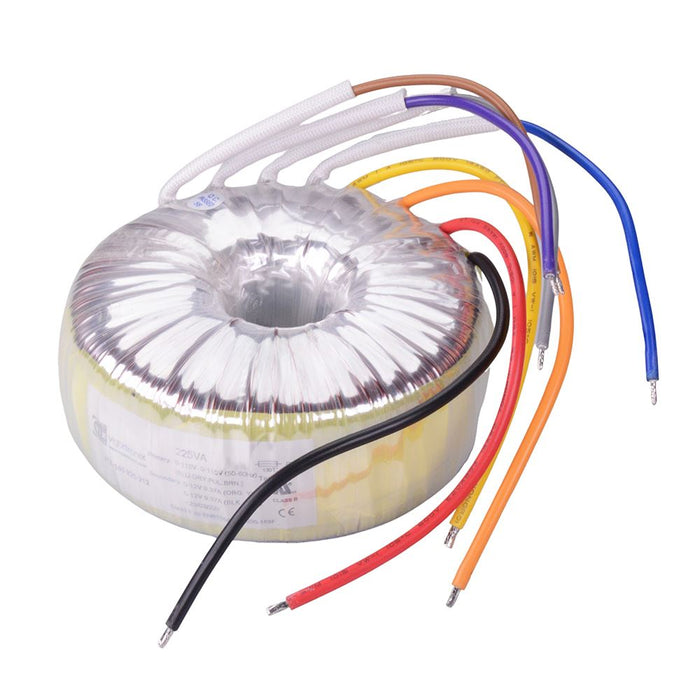

VTX-146-225-215 Toroidal Transformer 225VA 0-15V Vigortronix
by Vigortronix
SKU 487195
MPN: VTX-146-225-215
Availability:
Out of stock
Sold out
Original price
£39.52
-
Original price
£39.52
Original price
£39.52
Inc VAT
£39.52
-
£39.52
Current price
£39.52
Inc VAT
The VTX-146-225-215 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.
Dual primary winding: 115V+115V Dual secondary winding: 0-15V 0-15V Power: 225VA Supplied with mounting kit Dimensions: 51 x 110mm (Height x Diameter) Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
Specification
| Back order lead time | 5 Days |
| Diameter | 110mm |
| Height | 51mm |
| Output current | 7.5A |
| Power | 225VA |
| Primary voltage | 2 x 115V |
| Regulation | 7% |
| Secondary voltage | 2 x 15V |
| Weight | 2200g |
