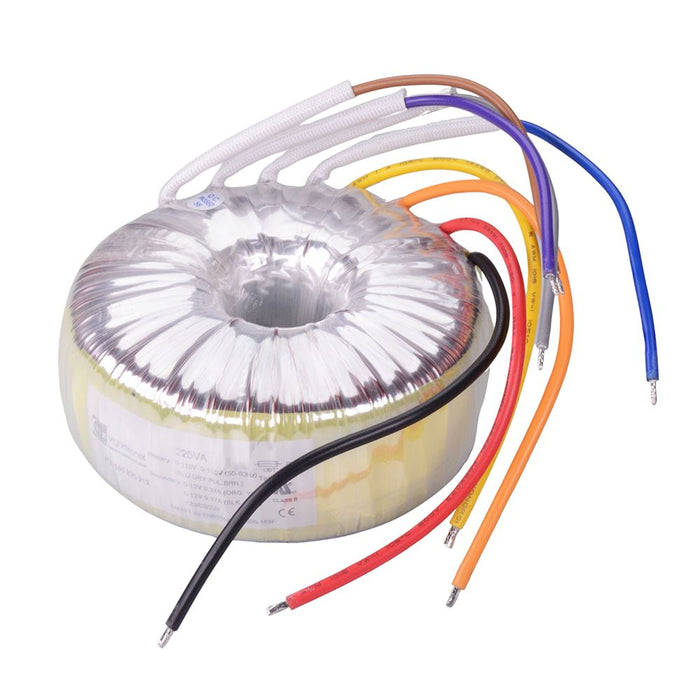

VTX-146-225-224 Toroidal Transformer 225VA 0-24V Vigortronix

SKU 487197

MPN: VTX-146-225-224

Out of stock
Sold out
Original price £38.37 - Original price £38.37
Original price
£38.37 Inc VAT
£38.37 - £38.37
Current price £38.37 Inc VAT
The VTX-146-225-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-24V 0-24V
  • Power: 225VA
  • Supplied with mounting kit
  • Dimensions: 51 x 110mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Diameter 110mm
    Height 51mm
    Output current 4.68A
    Power 225VA
    Primary voltage 2 x 115V
    Regulation 7%
    Secondary voltage 2 x 24V
    Weight 2200g
