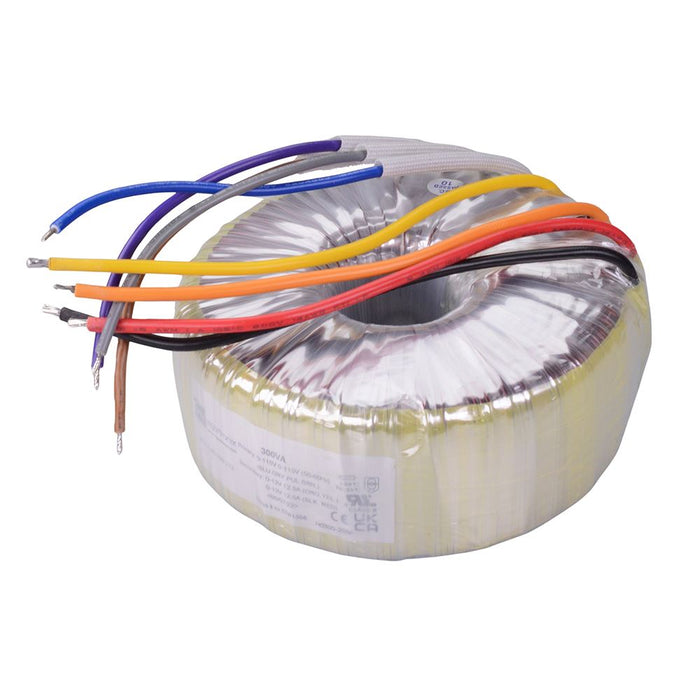

VTX-146-300-224 Toroidal Transformer 300VA 0-12V Vigortronix

SKU 488261

MPN: VTX-146-300-212

Out of stock
Sold out
Original price £50.77 - Original price £50.77
Original price
£50.77 Inc VAT
£50.77 - £50.77
Current price £50.77 Inc VAT
The VTX-146-300-224 is a high quality toroidal transformer featuring dual primary and secondary windings. The transformer features thermal fuses fitted to each primary winding, and a very low level radiated magnetic field. The transformers are widely used in industrial power, home appliances, instrumentation, communication and civil applications.

  • Dual primary winding: 115V+115V
  • Dual secondary winding: 0-24V 0-24V
  • Power: 300VA
  • Supplied with mounting kit
  • Dimensions: 64 x 125mm (Height x Diameter)
  • Compliant standards: EN61558, EN60950, UL, C-UL, UKCA and CE
  • Specification
    Back order lead time 5 Days
    Diameter 125mm
    Height 55mm
    Output current 6.25A
    Power 300VA
    Primary voltage 2 x 115V
    Regulation 6%
    Secondary voltage 2 x 24V
    Weight 3000g
