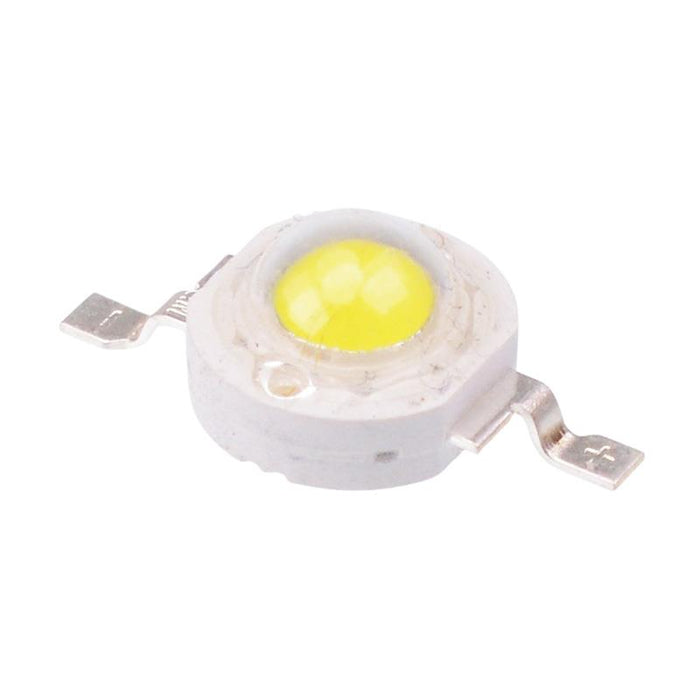

Warm White 3W High Power LED 220lm 135°

SKU 490464

MPN: HP70MW6J

Availability:
297 in stock
Original price £0.69 - Original price £0.69
Original price
£0.69
£0.69 - £0.69
Current price £0.69
Warm white high power 3W LEDs featuring a high luminous flux, mounted to a heatsink for dissipating heat. The LEDs feature a low profile design with a small package suitable for a range of applications including backlighting, general illumination and indication.

  • Luminous flux: 220lm
  • Colour temperature: 3000K
  • Viewing angle: 135°
  • Forward voltage: 3.2V
  • Forward current: 700mA, 1000mA peak
  • Excellent weather resistance
  • Long lifespan
  • Width: 19.9mm (across flats)
  • Height: 6.65mm
  • Specification
    Back Order Lead Time 40 Days
    Colour Warm White
    Colour Temperature 3000K
    Diameter 8.0mm
    Forward Current 700mA
    Forward Voltage 3.2V
    Lens Colour Clear
    Lens Shape Dome
    Luminous Flux 220lm
    Luminous Intensity 220lm
    MOQ 1
    Mounting Style Surface Mount
    Number of Pins 2
    Operating Temperature -40°C to 85°C
    Packaging Bulk
    Power Dissipation 2660mW
    Power Rating 3W
    Viewing Angle 135°
