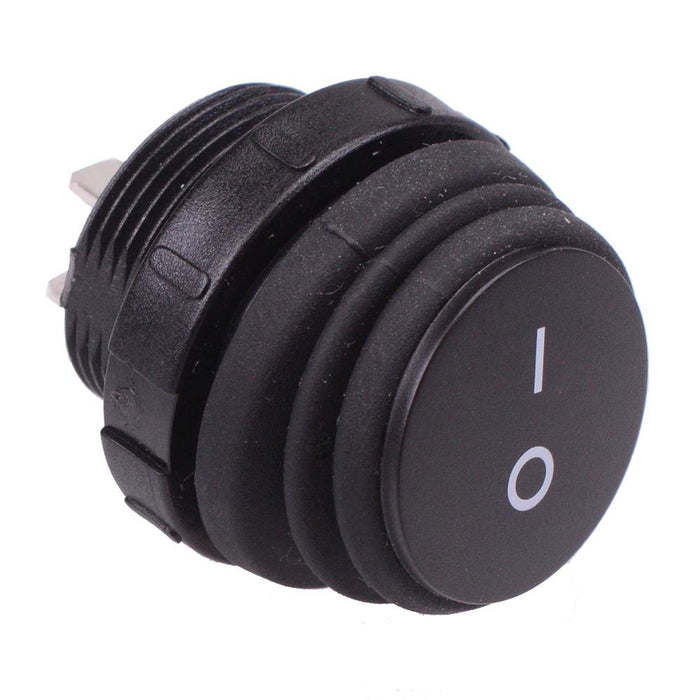

Waterproof On-Off Round 20mm Rocker Switch IP68 SPST 16A 250VAC
by Canal
SKU 491868
MPN: MR2-110R5W-NBBQ-2ERC
Availability:
303 in stock
Original price
£1.99
-
Original price
£1.99
Original price
£1.99
£1.99
£1.99
-
£1.99
Current price
£1.99
Waterproof round rocker switch featuring SPST contacts and On-Off function. The switch requires a 20mm panel cut-out and features IP68 protection rating above the panel. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-Off Contacts: SPST Panel cut-out: 20mm Panel thickness: 1-3mm Rating: 16(8)A 250VAC Protection rating: IP68 (above the panel) 4.8mm quick connect terminals Dimensions: 35.3 x 24.9mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPST |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 20mm |
| Panel Thickness | 1-3mm |
| Protection Level | IP68 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
