Waterproof On-On Rectangle Rocker Switch IP68 SPDT 16A 250VAC
by Canal
SKU 491867
MPN: MR2-120C2N-NBBQ-29NC
Availability:
498 in stock
Original price
£2.05
-
Original price
£2.05
Original price
£2.05
£2.05
£2.05
-
£2.05
Current price
£2.05

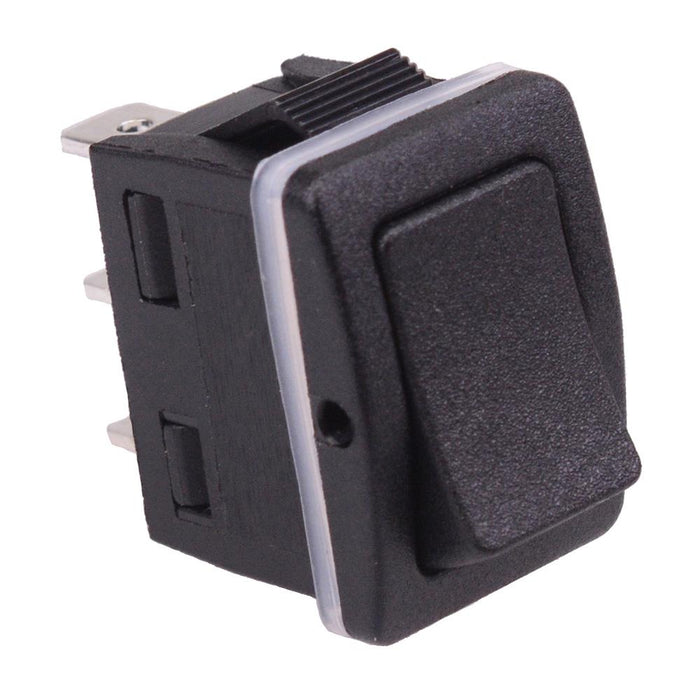

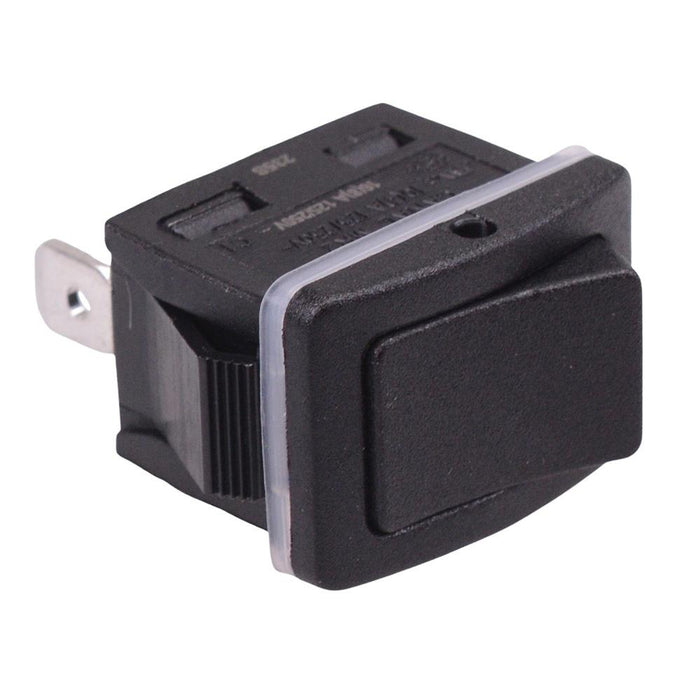

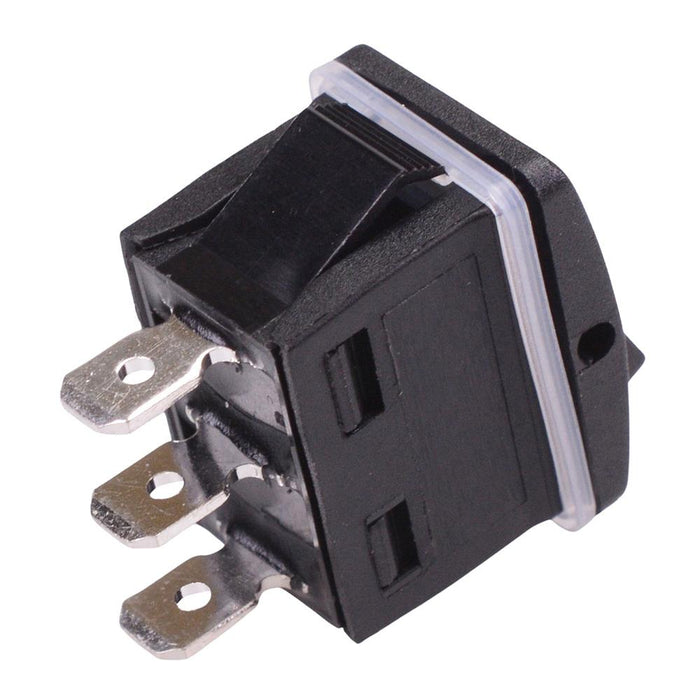

Waterproof rectangle rocker switch featuring SPDT contacts and On-On function. The switch requires a 19.2 x 12.9mm panel cut-out and features IP68 protection rating above the panel. The switch is rated up to 16A making it suitable for a wide range of AC applications.
Function: On-On Contacts: SPDT Panel cut-out: 19.2 x 12.9mm Panel thickness: 0.75-3mm Rating: 16(8)A 250VAC Protection rating: IP68 (above the panel) 4.8mm quick connect terminals Dimensions: 21.0 x 15.0 x 27.2mm (length x width x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Rating | 16(8)A 250VAC |
| Current Rating | 16A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Panel Cut Out | 19.2 x 12.9mm |
| Panel Thickness | 0.75-3mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
