White 19mm Latching Anti Vandal Push Button Switch SPDT 12V NO/NC
by Langir
SKU 491052
MPN: L19TFZSRW12V
Availability:
29 in stock
Original price
£9.90
-
Original price
£9.90
Original price
£9.90
£9.90
£9.90
-
£9.90
Current price
£9.90

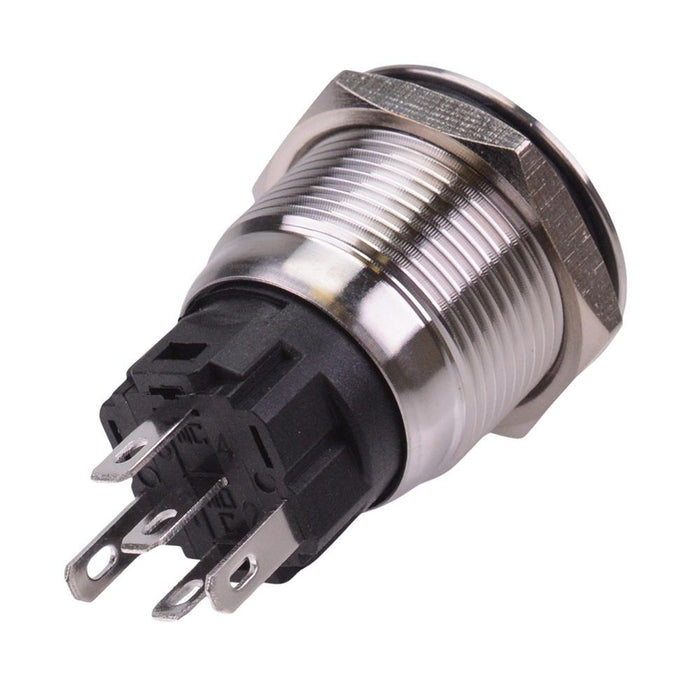

White illuminated anti vandal 19mm push button switch featuring NO/NC contacts and quick connect terminals. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action White LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 3A 250VAC Dimensions: 37 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Material | Silver Alloy |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 100,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Panel Thickness | 1-10mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
