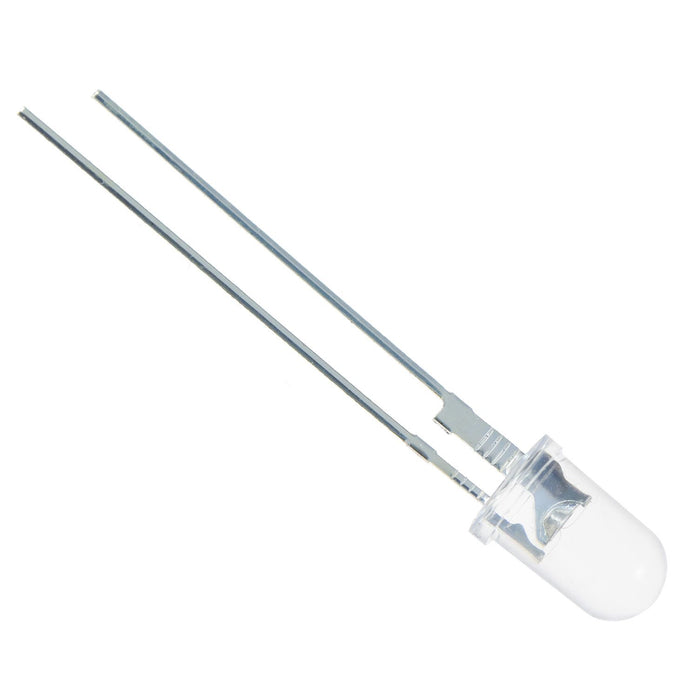

White 5mm Deluxe High Intensity LED 75,000mcd
by OptoSupply
SKU 311074
MPN: OSW54L5111P
Availability:
1543 in stock
Original price
£0.51
-
Original price
£0.51
Original price
£0.51
Inc VAT
£0.51
-
£0.51
Current price
£0.51
Inc VAT
High intensity LEDs with a waterclear lens and 5mm package. The LEDs feature a blade shape cathode which acts as a heat sink to dissipate heat at high current levels. Suitable for a wide range of applications where a high luminous intensity is required.
Waterclear lens 5mm diameter LED Colour: White Brightness: 75,000mcd Long lifespan Superior weather resistance UV resistant epoxy Suitable for PCB or panel mounting applications Excellent energy efficieny and reliability Forward voltage: 3.3V Forward current: 50mA max
Specification
| Back order lead time | 45 Days |
| Colour | White |
| Diameter | 5mm |
| Forward current | 50mA |
| Forward voltage | 3.3V |
| Lens colour | Clear |
| Lens shape | Round |
| Luminous intensity | 75,000mcd |
| Mode | Constant |
| Moq | 5 |
| Mounting style | Through Hole |
| Number of pins | 2 |
| Package | 5mm |
| Packaging | Bulk |
| Power dissipation | 190mW |
| Viewing angle | 15° |
