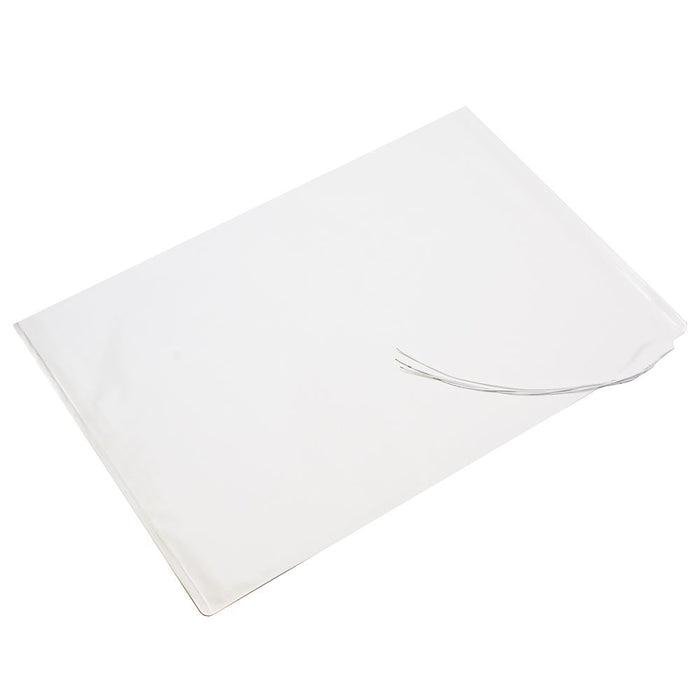

White Large Floor Pressure Mat 720 x 560mm

SKU 485924

MPN: 485924

165 in stock
Original price £12.74 - Original price £12.74
Original price
£12.74 Inc VAT
£12.74 - £12.74
Current price £12.74 Inc VAT
White large 720 x 560mm pressure sensitive mat featuring NO contacts, suitable for applications including alarm systems, automatic doors, patient bed monitoring and seat occupancy detection.

  • Normally open contacts
  • Dimensions: 720 x 560 x 3mm
  • Operating pressure: 25kg over 50mm²
  • Mat material: Seem welded PVC
  • 150mm of 0.22mm² white PVC insulated cable
  • Maximum switching voltage: 25V DC
  • Maximum switching current: 0.25A
  • Specification
    Back order lead time 120 Days
    Colour White
    Contact configuration Normally Open
    Current rating 0.25A
    Operating force 25Kg over 50mm²
    Protection level IP64
    Voltage rating 25VDC
