White LED On-On Latching 19mm Black Vandal Resistant Push Switch NO/NC
SKU 481616
MPN: 481616
Availability:
11 in stock
Original price
£7.04
-
Original price
£7.04
Original price
£7.04
Inc VAT
£7.04
-
£7.04
Current price
£7.04
Inc VAT

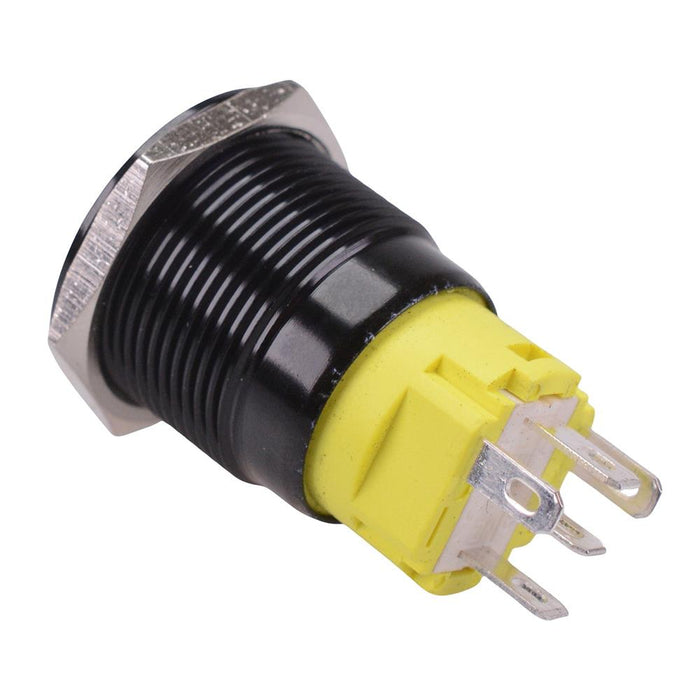

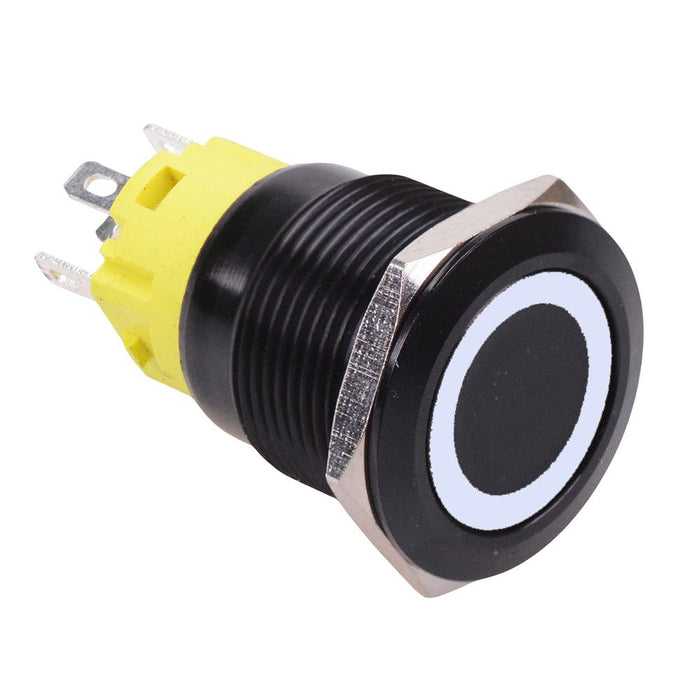

Vandal resistant push button switch manufactured from zinc, featuring a white LED and NO/NC contacts. The switch features IP65 protection and is suitable for 12V applications.
Latching On-On action White LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Colour | White |
| Contact configuration | SPDT |
| Contact rating | 5A 250VAC |
| Current rating | 5A |
| Electrical life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination colour | White |
| Illumination voltage | 12VDC |
| Material | Zinc Alloy |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +85°C |
| Panel cut out | 19mm |
| Protection level | IP65 |
| Switch operation | On-On |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC |
