White LED On-On Latching 19mm Vandal Push Switch NO/NC Power Symbol

SKU 482300

MPN: 482300

73 in stock
Original price £5.93 - Original price £5.93
Original price
£5.93 Inc VAT
£5.93 - £5.93
Current price £5.93 Inc VAT

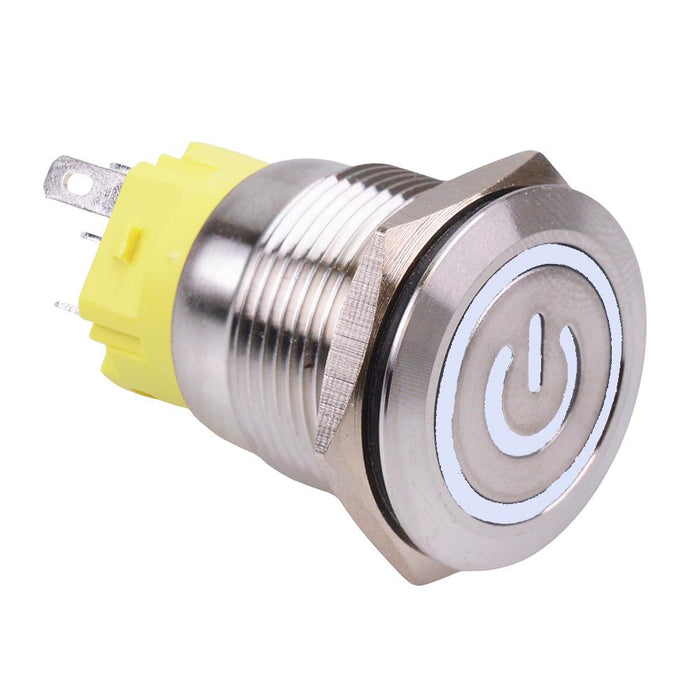

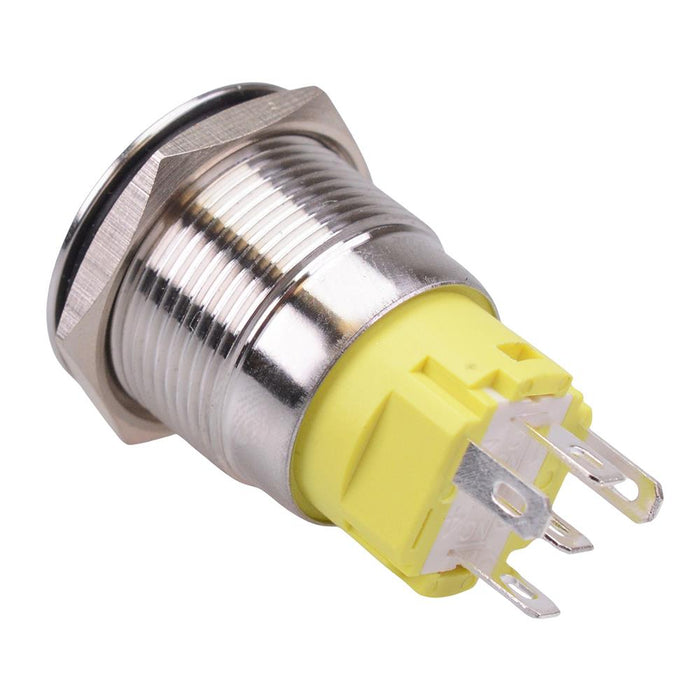

Vandal resistant push button switch featuring illuminated power symbol manufactured from metal, featuring a white LED and NO/NC contacts. The switch features IP67 protection and is suitable for 12V applications.

  • Latching On-On action
  • White LED
  • 12V illumination voltage
  • IP67 protection rating
  • 19mm panel cut-out diameter
  • NO/NC contacts
  • Solder terminals
  • Rating: 5A 250VAC
  • Specification
    Actuation Latching
    Back order lead time 30 Days
    Colour White
    Contact configuration SPDT
    Contact rating 5A 250VAC
    Current rating 5A
    Electrical life 50,000 Cycles
    Illuminated Yes
    Illumination colour White
    Illumination voltage 12VDC
    Material Stainless Steel
    Mounting style Panel
    Number of positions 2
    Operating temperature -20°C to +55°C
    Panel cut out 19mm
    Protection level IP67
    Switch operation On-On
    Terminal type Solder
    Voltage rating 250VAC
