White LED On-On Latching 19mm Vandal Push Button Switch SPDT Power Symbol
SKU 482300
MPN: 482300
Availability:
Out of stock
Sold out
Original price
£8.00
-
Original price
£8.00
Original price
£8.00
£9.07
£9.07
-
£9.07
Current price
£9.07

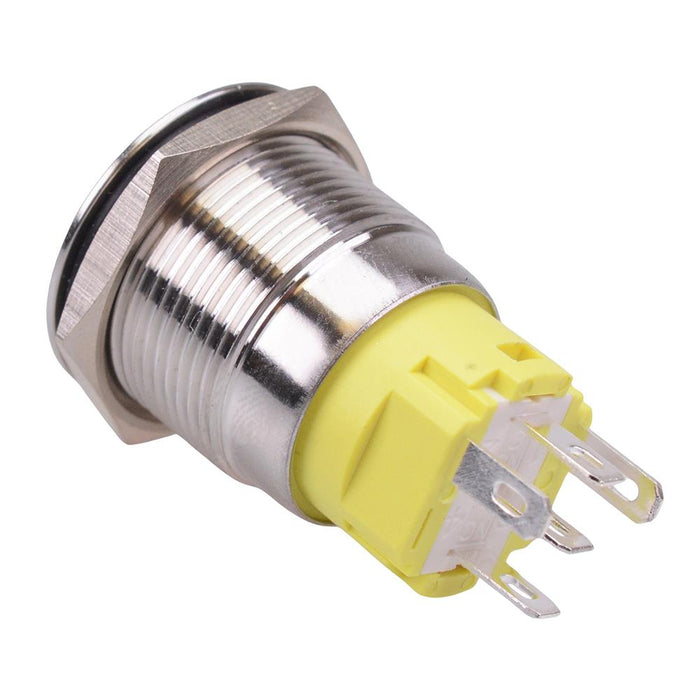

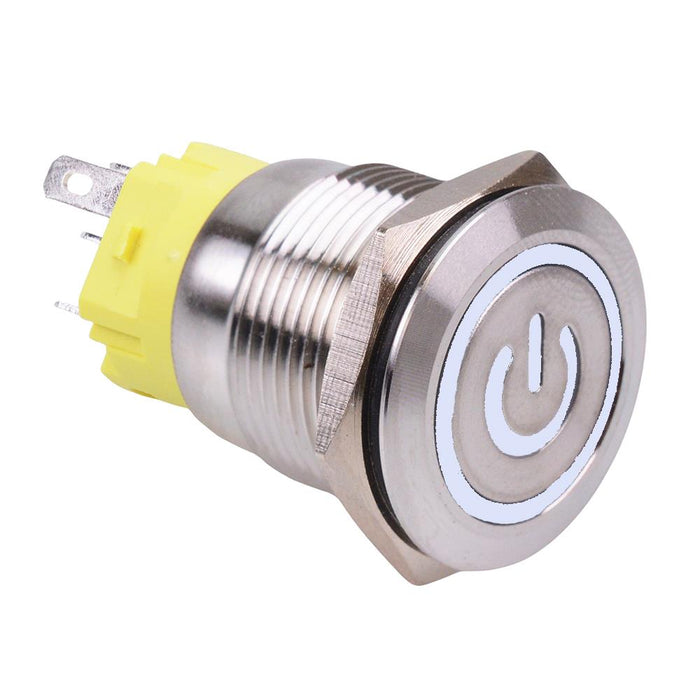

Latching vandal resistant 19mm push button switch featuring a white 12V LED power symbol and SPDT contacts. The switch is manufactured from stainless steel and features IP65 protection rating, making it suitable for a wide range of automotive and other 12V applications.
Latching action White LED 12V illumination voltage IP65 protection rating 19mm panel cut-out diameter NO/NC contacts 2.8mm terminals Rating: 5A 250VAC Dimensions: 35.1 x 22mm (length x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | White |
| Contact Configuration | SPDT |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 12VDC |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 19mm |
| Protection Level | IP65 |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
