White Off-(On) Stainless Steel Momentary Vandal Push Button Switch 2A SPST
by Langir
SKU 485893
MPN: V12BP1S-W
Availability:
38 in stock
Original price
£3.12
-
Original price
£3.12
Original price
£3.12
£3.12
£3.12
-
£3.12
Current price
£3.12

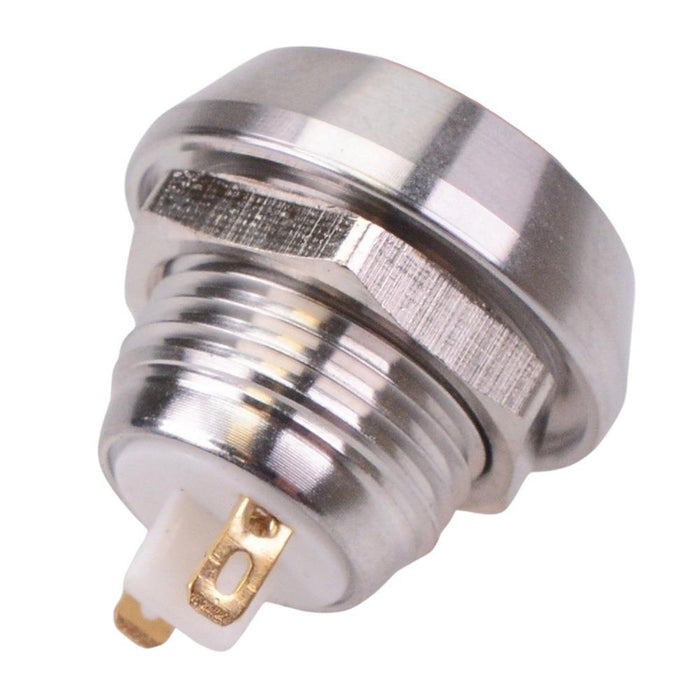

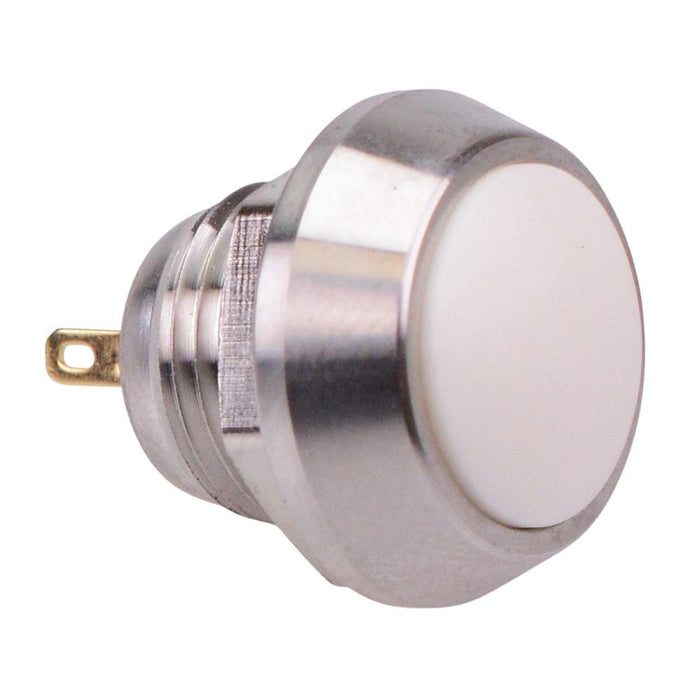

White vandal resistant push button switch featuring a round actuator and robust stainless steel body. The switch features an IP65 sealed construction and normally open SPST contacts suitable for a wide variety of applications.
Momentary Off-(On) action SPST contacts Stainless steel body 12mm panel cut-out 2A 48VDC rating Solder terminals 1,000,000 mechanical cycles Dimensions: 19.3 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 2A 48VDC |
| Current Rating | 2A |
| Electrical Life | 200,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Stainless Steel |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 5N |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12mm |
| Panel Thickness | 6mm Max |
| Protection Level | IP65 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
