White Off-(On) Momentary Round Push Button Switch 12mm SPST
by Canal
SKU 482703
MPN: PBS-11B-W White
Availability:
33 in stock
Original price
£0.78
-
Original price
£0.78
Original price
£0.78
£0.78
£0.78
-
£0.78
Current price
£0.78

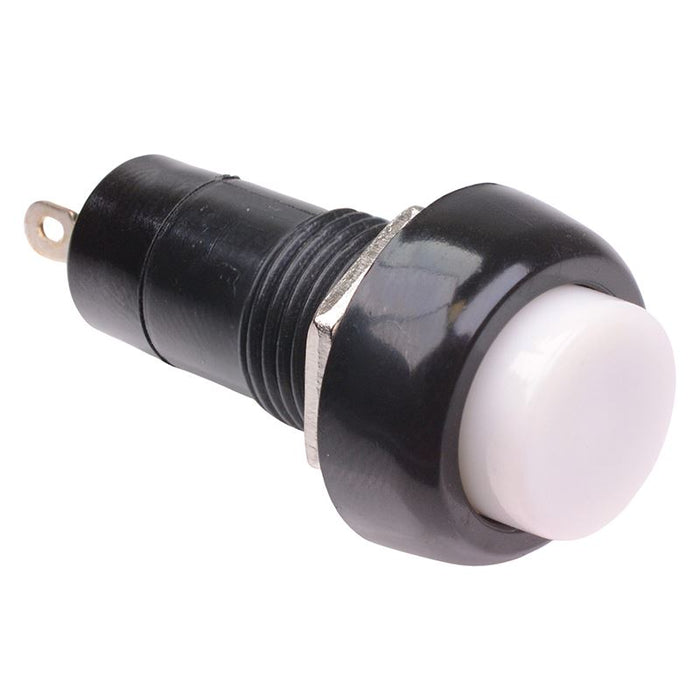

Momentary push button switch featuring a white round actuator and SPST contacts.
Panel cut-out: 12mm Button diameter: 12mm Rating: 1A 250VAC Solder lug terminals Off-(On) momentary operation Dimensions: 38.2 x 19mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 1A 250VAC |
| Current Rating | 1A |
| Electrical Life | 5000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
