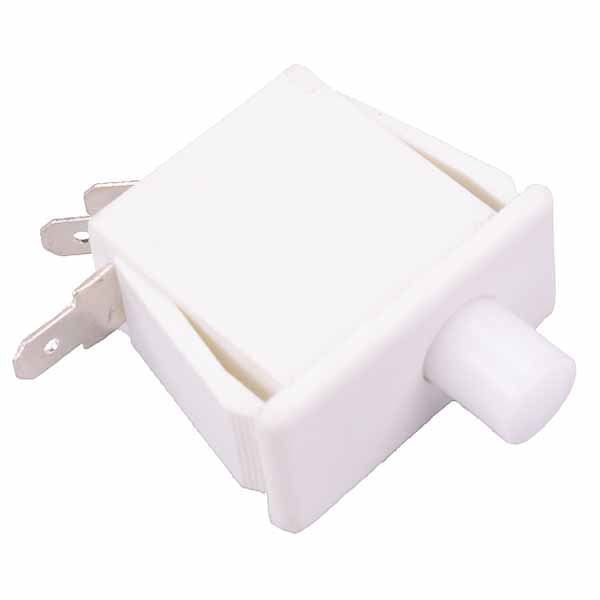

White Off-(On) Rectangle Momentary Push Button Switch 19mm SPST
SKU 482220
MPN: 482220
Availability:
332 in stock
Original price
£1.11
-
Original price
£1.11
Original price
£1.11
£1.11
-
£1.11
Current price
£1.11
Rectangular push button switch featuring a white actuator and Off-(On) push to make momentary action, suitable for a range of door applications including fridges.
Off-(On) momentary action
SPST contacts
Rating: 10A 125VAC, 6A 250VAC
Quick connect 4.8mm terminals
Panel cut-out: 13.3 x 28.5mm
Dimensions: 41.9 x 31.7 x 17.4mm (Height x Length x Width)
Actuator dimensions: 9.2mm x 8.3mm (Height x Diameter)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 6A 250VAC, 10A 125VAC |
| Current Rating | 10A @ 125VAC |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +85°C |
| Panel Cut Out | 13.3 x 28.5mm |
| Switch Operation | Off-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
