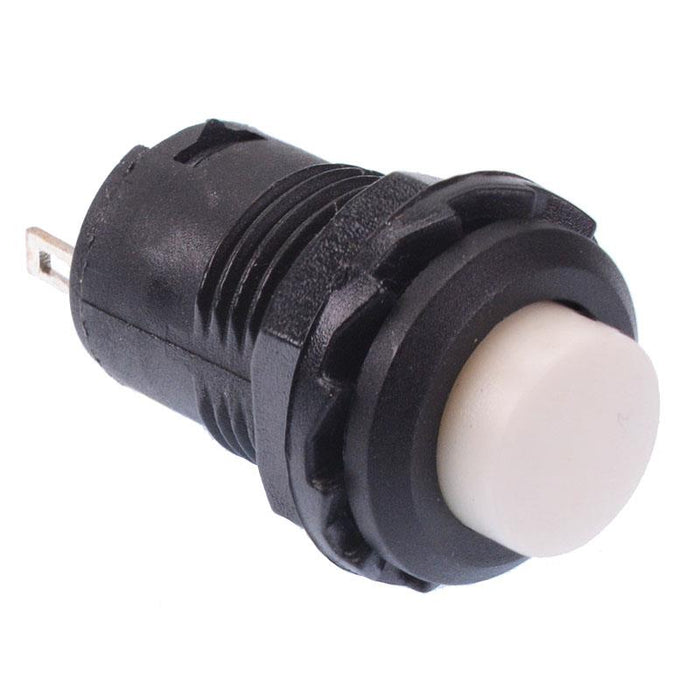

White Off(On) Momentary Round 12mm Switch SPST
SKU 103116
MPN: 103116
Availability:
11 in stock
Original price
£0.50
-
Original price
£0.50
Original price
£0.50
£0.50
-
£0.50
Current price
£0.50
Low cost round push button switches with a momentary operation and solder lug terminals ideal for a wide range of applications.
Suitable for panel mounting Solder lug terminals Momentary Off-(On) operation SPST contacts 12mm panel cut-out Dimensions: 30.5 x 16.5mm (Height x Diameter) Maximum Panel Thickness: 5mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 40 Days |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 1.5A 250VAC |
| Current Rating | 1.5A |
| Electrical Life | 10,000+ Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +65°C |
| Panel Cut Out | 12mm |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 250VAC |
