White On-Off Rectangle Rocker Switch SPST

SKU 130025

MPN: 130025

Availability:
179 in stock
Original price £0.51 - Original price £0.51
Original price
£0.51 Inc VAT
£0.51 - £0.51
Current price £0.51 Inc VAT

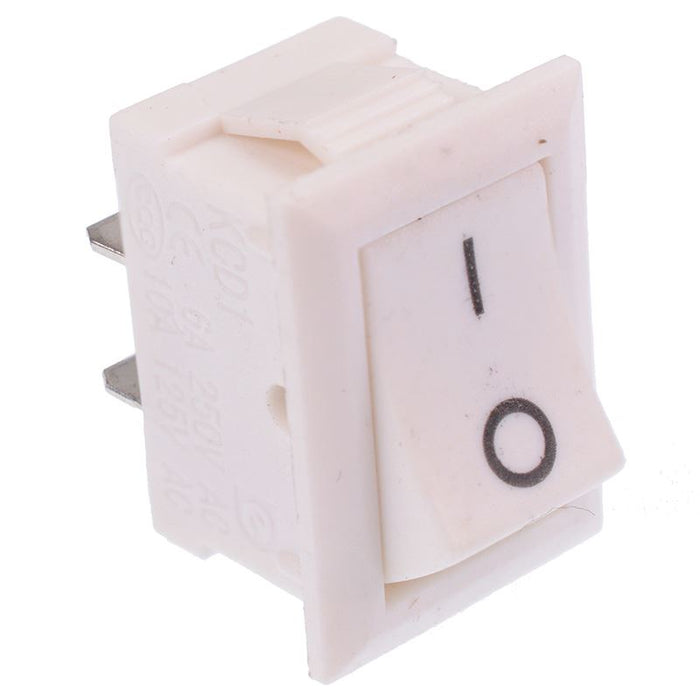

White rectangle rocker switch with SPST contacts and on-off action. The switch is designed for snap-in mounting and is suitable for a wide range of applications.

  • On-off action
  • SPST contacts
  • 4.8mm quick connect terminals
  • Panel cut-out: 19.2 x 13mm
  • Dimensions: 25 x 21 x 15mm (Height x Length x Width)
  • Maximum current: 6A
  • Maximum voltage: 250VAC
  • Specification
    Actuation Latching
    Back order lead time 40 Days
    Colour White
    Contact configuration SPST
    Contact rating 6A 250VAC
    Current rating 6A
    Illuminated No
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -25°C to +85°C
    Panel cut out 19.2 x 13mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 250VAC
