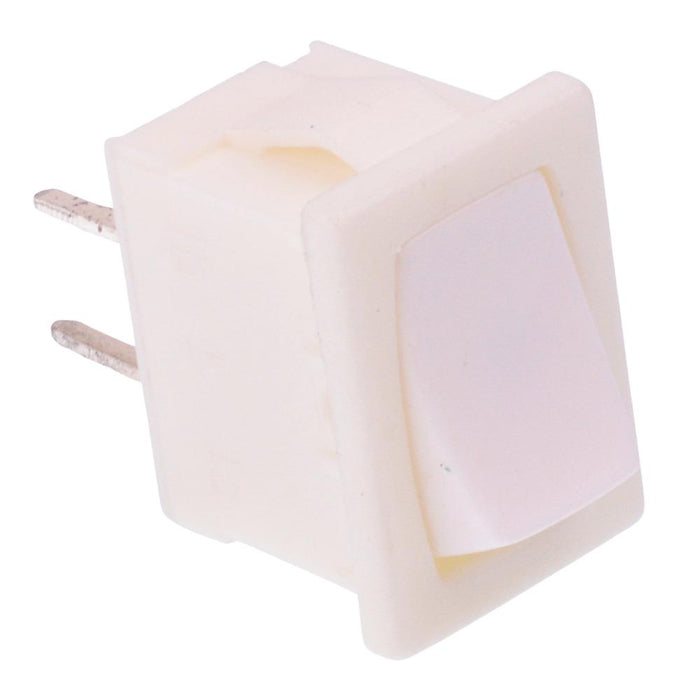

White On-Off Rocker Switch 19.2 x 13mm Switch SPST 15A
SKU 487310
MPN: RA15WWEPOF
Availability:
1992 in stock
Original price
£0.48
-
Original price
£0.48
Original price
£0.48
Inc VAT
£0.48
-
£0.48
Current price
£0.48
Inc VAT
White On-Off rocker switch featuring a 19.2 x 13mm panel cut-out and SPST contacts. The switch features a 10A 250VAC rating and pcb terminals, suitable for a wide range of applications.
SPST contacts On-Off function Rating: 10A 250VAC, 15A 125VAC Panel cut-out: 19.2 x 13mm Dimensions: 20.8 x 14.8mm (length x width) PCB terminals
Specification
| Actuation | Latching |
| Back order lead time | 45 Days |
| Colour | White |
| Contact configuration | SPST |
| Contact material | Silver Alloy |
| Contact rating | 10A 250VAC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -20°C to +85°C |
| Panel cut out | 19.2 x 13mm |
| Panel thickness | 0.7-3mm |
| Switch operation | On-Off |
| Terminal type | PCB |
| Voltage rating | 250VAC |
