White On-(On) Momentary 220V Push Button Switch SPDT
SKU 485013
MPN: 485013
Availability:
17 in stock
Original price
£7.11
-
Original price
£7.11
Original price
£7.11
£7.11
£7.11
-
£7.11
Current price
£7.11

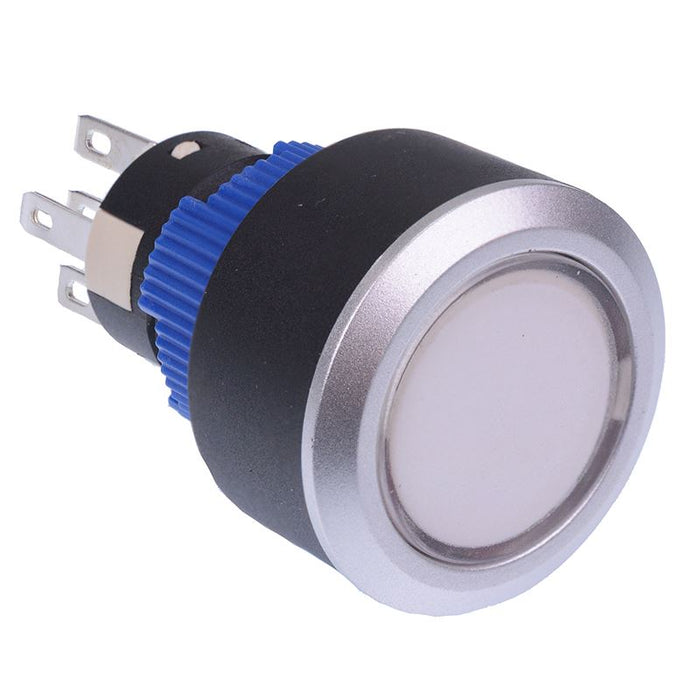

White On-(On) momentary push button switch featuring SPDT contacts and LED illumination. The switch features a silver bezel and is suitable for panel mount applications requiring a 16mm diameter switch.
White LED illumination voltage: 220V Panel cut-out diameter: 16mm SPDT contacts IP65 protection level Rating: 3A 250VAC
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | 1NO-1NC |
| Contact Rating | 3A 250VAC |
| Current Rating | 3A |
| Electrical Life | 50,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | White |
| Illumination Voltage | 220VAC |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 16mm |
| Panel Thickness | 6mm |
| Protection Level | IP65 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
