White RCA Vertical PCB Phono Socket
SKU 482652
MPN: 482652
Availability:
352 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
-
£0.19
Current price
£0.19

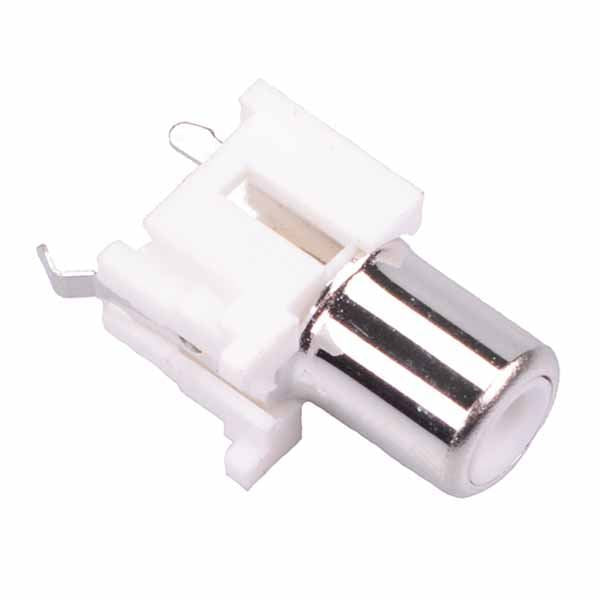

White vertical PCB mounting phono socket featuring PBT insulation and nickel plated brass terminals. Suitable for use with audio and video signals.
Nickel plated contacts
Pin width: 2mm
Pin pitch: 8.7mm
Contact resistance: 30mΩ Max
Insulation resistance: 50MΩ Min at DC 500V
Specification
| Back Order Lead Time | 30 Days |
| MOQ | 5 |
| Colour | White |
| Contact Material | Nickel Plated |
| Gender | Female |
| Housing Material | PBT |
| Mounting Type | PCB |
| Operating Temperature | -25°C to +85°C |
| Termination Method | Solder |
