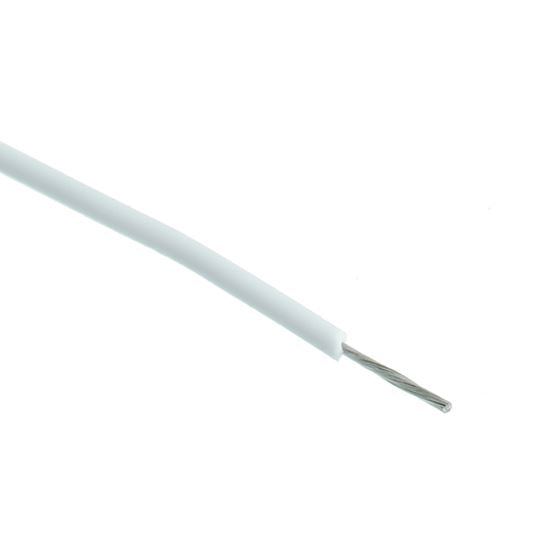

White Silicone Lead Wire 22AWG 60/0.08mm (price per metre)
SKU 403030
MPN: 403030
Availability:
818 in stock
Original price
£0.49
-
Original price
£0.49
Original price
£0.49
£0.49
-
£0.49
Current price
£0.49
Silicone insulated wire with a copper conductor suitable for a wide range of applications.
Wide temperature range Flexible and lightweight Rated voltage: 600V 60/0.08mm copper stranding Cut to length in pieces up to 25 metres
Specification
Back Order Lead Time | 120 Days |
Colour | White |
Conductor Cross Section | 0.33mm² |
Conductor Diameter | 0.78mm |
Conductor Material | Tinned Copper |
Conductor Stranding | 60/0.08mm |
Current Rating | 8.7A |
Insulation Material | Silicone |
Insulation Thickness | 0.55mm |
Operating Temperature | -60°C to 200°C |
Overall Diameter | 1.7mm |
Voltage Rating | 600V |
Wire Gauge | 22AWG |
