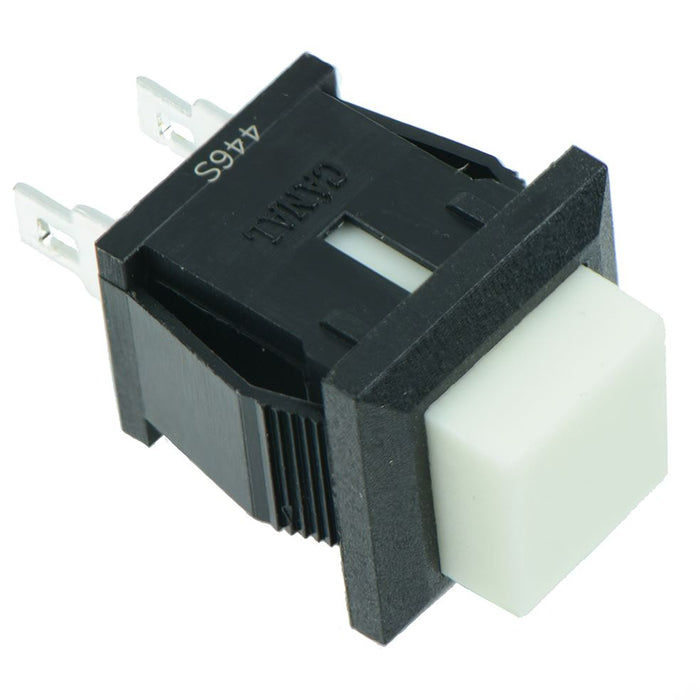

White Square Momentary On-(Off) Push to Break Switch 1A SPST
by Canal
SKU 550438
MPN: PS17-6-B1BW-C
Availability:
1671 in stock
Original price
£0.49
-
Original price
£0.49
Original price
£0.49
£0.49
-
£0.49
Current price
£0.49
Square push to break switch featuring SPST contacts and snap-in mounting.
On-(Off) push to break operation Rating: 1A 125VAC SPST contacts Panel cut-out: 12.4 x 11mm White actuator Nylon 94V-2 housing Dimensions: 24.9 x 14 x 14mm (H x W x L)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 45 Days |
| Colour | White |
| Contact Configuration | SPST |
| Contact Rating | 1A 125VAC |
| Current Rating | 1A |
| Electrical Life | 10000 Cycles Min |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | 0°C to +65°C |
| Panel Cut Out | 12.4 x 11.0mm |
| Switch Operation | On-(Off) |
| Terminal Type | Solder |
| Voltage Rating | 125VAC |
