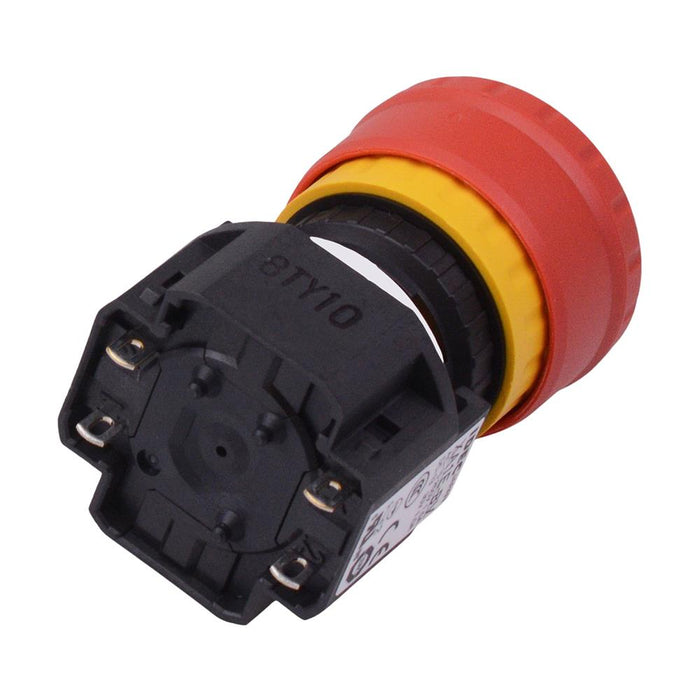

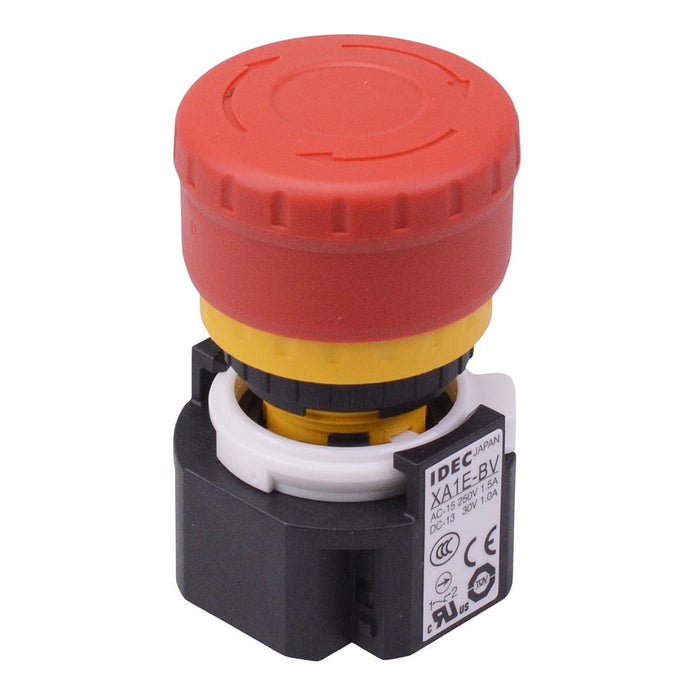

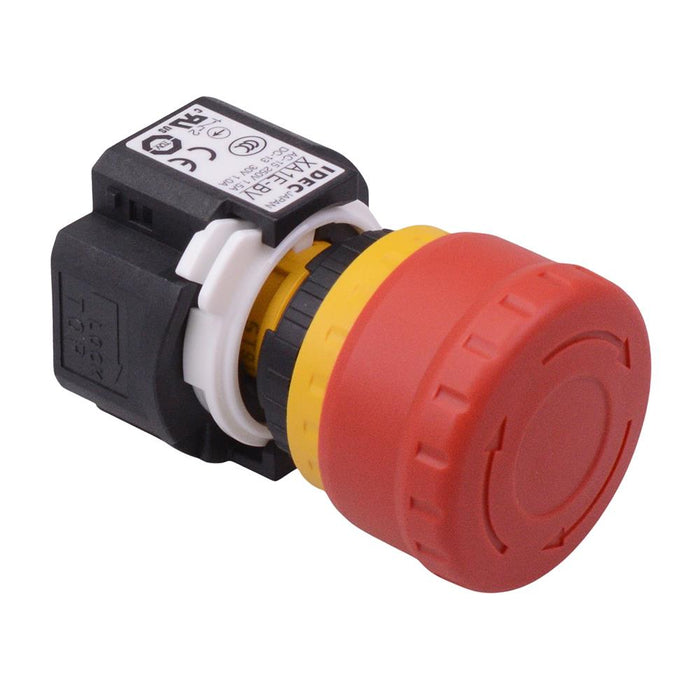

XA1E-BV302R 16mm Emergency Stop Switch 29mm Mushroom 2NC IP65 IDEC
by IDEC
SKU 493220
MPN: XA1E-BV302-R
Availability:
10 in stock
Original price
£32.32
-
Original price
£32.32
Original price
£32.32
£32.32
-
£32.32
Current price
£32.32
The XA1E-BV302R is a 16mm E-stop switch manufactured by IDEC, featuring a 29mm mushroom head and 2NC contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
2NC contacts 16mm panel hole diameter IP65 protection level Solder terminals 29mm mushroom head 5A 300VAC rating RU, TUV, CE, CCC certification
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 300V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 16.2mm |
| Product Series | XA |
| Protection Level | IP65 |
| Terminal Type | Solder |
| Voltage Rating | 300V |
