XT90E-M Male 2-Pin Gold Plated Panel Mount Connector 30A AMASS
by AMASS
SKU 490419
MPN: XT90E-M.G.B
Availability:
246 in stock
Original price
£1.90
-
Original price
£1.90
Original price
£1.90
£1.90
£1.90
-
£1.90
Current price
£1.90

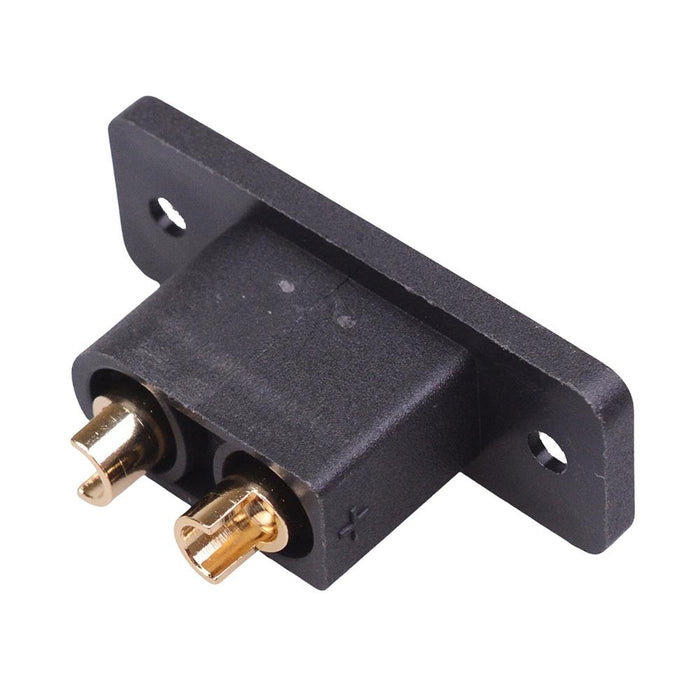

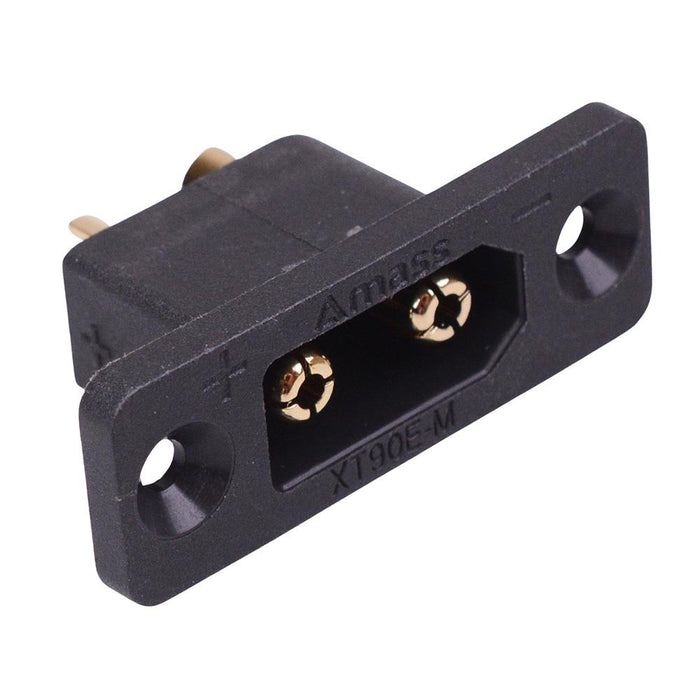

Male XT90E-M connector featuring gold plated brass contacts and high temperature nylon housing. The connectors are housed in a compact package and are suitable for panel mount applications including drones, RC, models and airsoft.
Manufactured by AMASS Current rating: 30A Voltage rating: 500VDC Contact material: gold plated copper Insulator material: nylon Wire size: 12-8AWG Mounting hole diameter: 3.2mm Mounting hole pitch: 32.4mm Dimensions: 22.8 x 42.0 x 15.1mm (length x width x height)
Specification
| Back Order Lead Time | 120 Days |
| Colour | Black |
| Contact Material | Gold Plated Copper |
| Contact Resistance | 0.40mΩ |
| Current Rating | 30A |
| Dielectric Withstand Voltage | IP40 |
| Gender | Male |
| Housing Material | Nylon |
| MOQ | 1 |
| Number of Poles | 3 |
| Operating Temperature | -20°C to 120°C |
| Termination Method | Solder |
| Voltage Rating | 500VDC |
| Wire Gauge | 12-8AWG |
