XW1E-BV4TG04MFR 22mm Emergency Stop Switch Green Indicator 4NC IDEC
by IDEC
SKU 489676
MPN: XW1E-BV4TG04MFR
Availability:
10 in stock
Original price
£42.21
-
Original price
£42.21
Original price
£42.21
Inc VAT
£42.21
-
£42.21
Current price
£42.21
Inc VAT

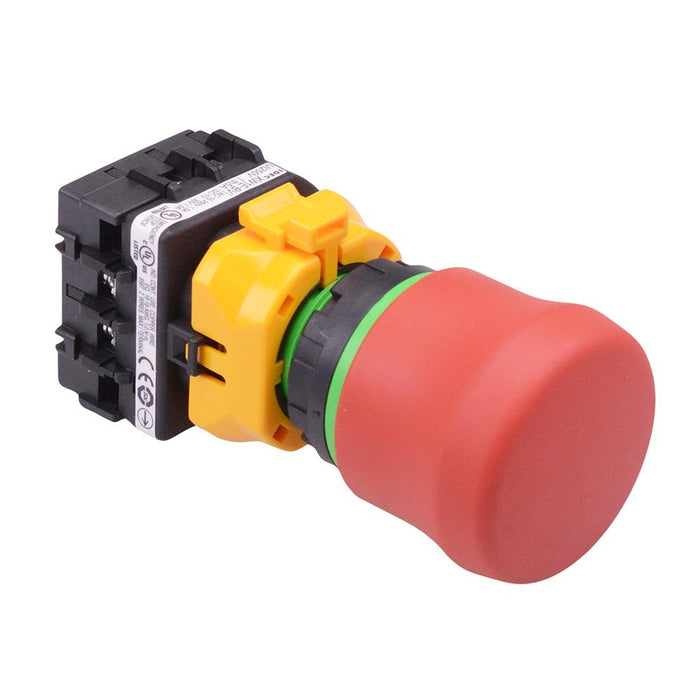

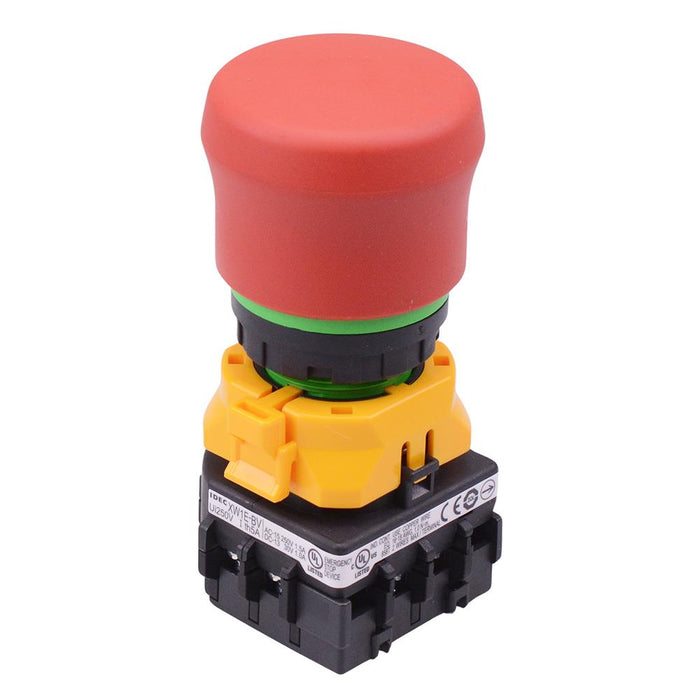

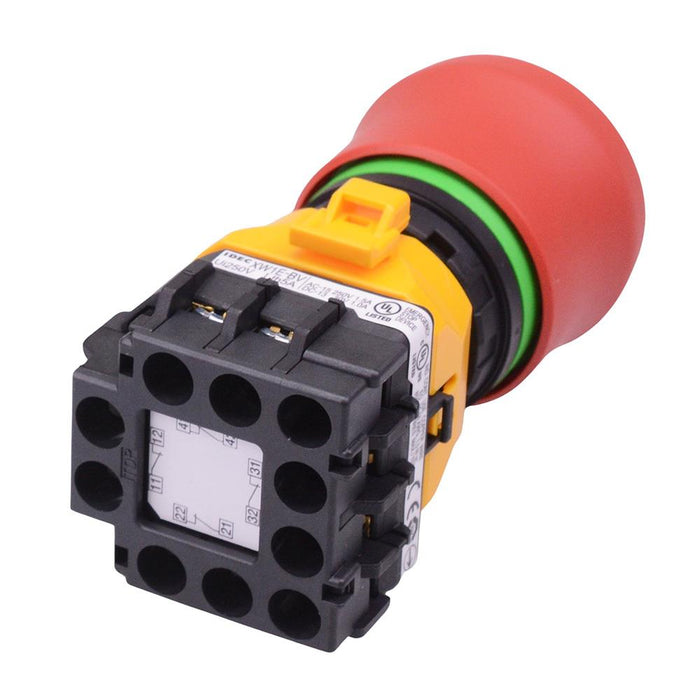

The XW1E-BV4TG04MFR is a 22mm e-stop switch featuring a green status indicator and IDEC's 3rd generation reverse energy structure. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XW series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.
Fail safe design Contacts: 4NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 22.3mm Panel thickness: 1-4mm Behind panel depth: 44.9mm Head diameter: 40mm Screw terminals UL, c-UL listed. EN compliant compliant
Specification
| Actuation | Twist Release |
| Back order lead time | 10 Days |
| Colour | Red |
| Contact configuration | 4NC |
| Contact material | Gold Plated |
| Current rating | 5A |
| Electrical life | 100,000 Cycles |
| Head type | Mushroom |
| Illuminated | No |
| Moq | 1 |
| Mounting style | Panel |
| Number of positions | 2 |
| Operating temperature | -25°C to +60°C |
| Panel cut out | 22.3mm |
| Product series | XW |
| Protection level | IP65 |
| Terminal type | Screw |
| Voltage rating | 250V |
