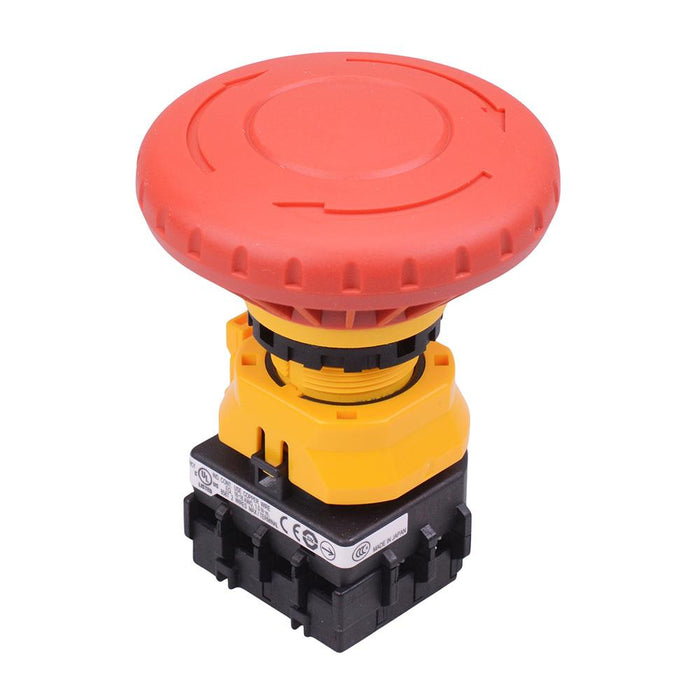

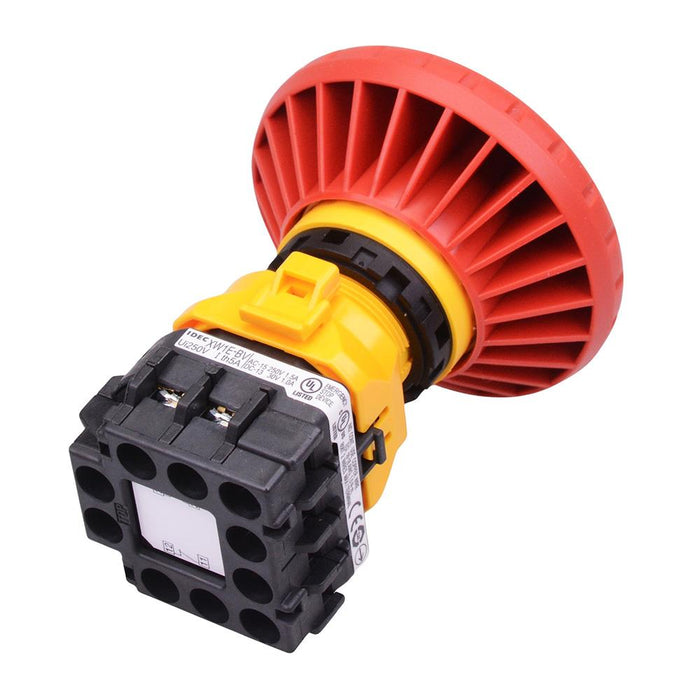

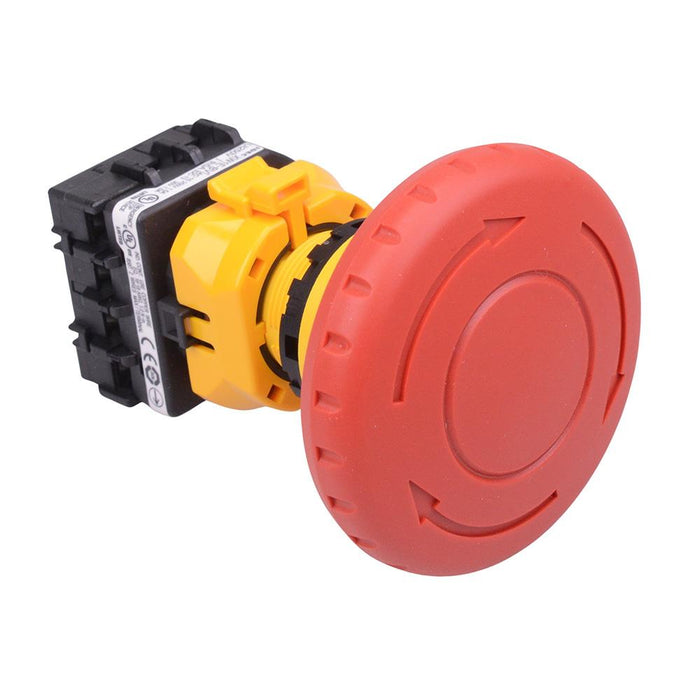

XW1E-BV502MFR 22mm Emergency Stop Switch 60mm Mushroom 2NC IDEC
by IDEC
SKU 492783
MPN: XW1E-BV502MFR
Availability:
60 in stock
Original price
£51.79
-
Original price
£51.79
Original price
£51.79
£51.79
-
£51.79
Current price
£51.79
The XW1E-BV502MFR is a 22mm e-stop switch featuring a mechanical status indicator and IDEC's reverse energy structure. The switch features the highest level of safety with "Safe Break Action" ensuring the safety of operator and system when the switch is damaged due to excessive shocks. The XW series is designed for a wide range of applications including robotics, AGVs, factory automation, manufacturing and other industrial uses.
Fail safe design Contacts: 2NC Rated current: 5A Rated insulation voltage: 250V Panel cut-out: 22.3mm Panel thickness:0.8-6mm Behind panel depth: 48.7mm Head diameter: 60mm Screw terminals UL c-UL listed, EN compliant
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 80 Days |
| Colour | Red |
| Contact Configuration | 2NC |
| Contact Material | Gold Plated Silver |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +60°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | XW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 250V |
