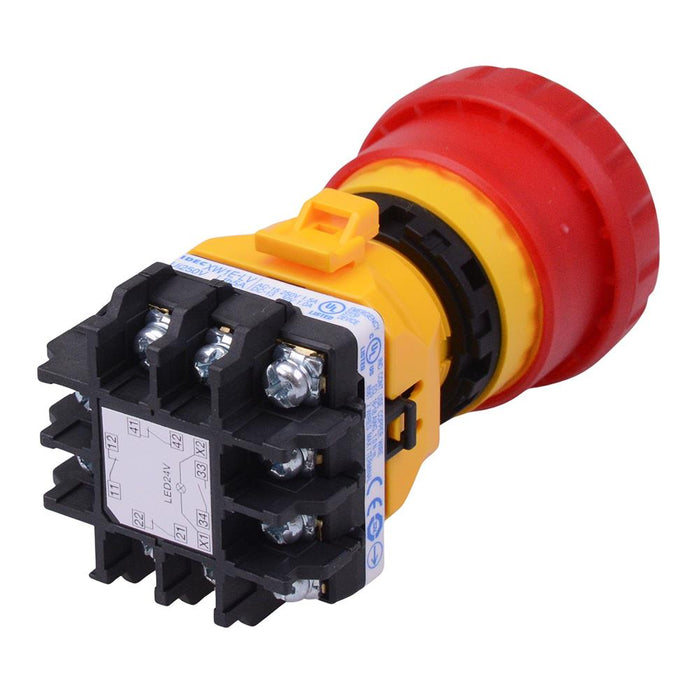

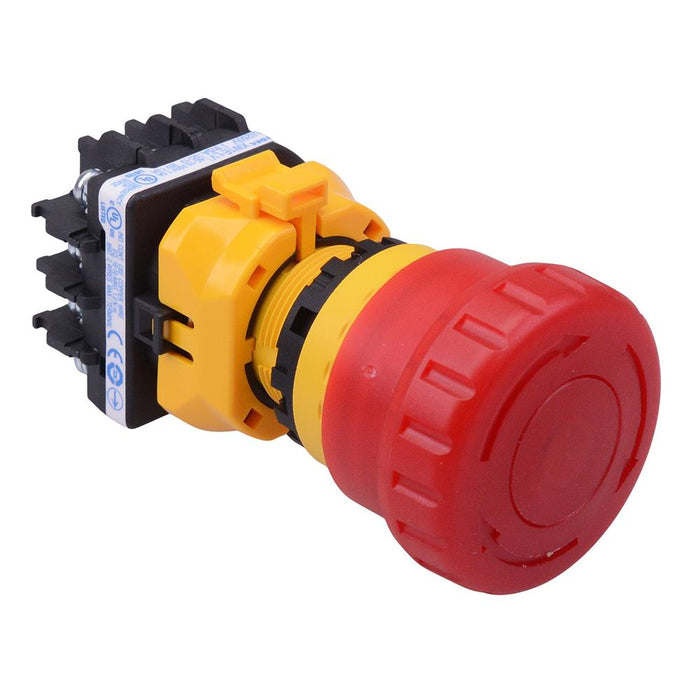

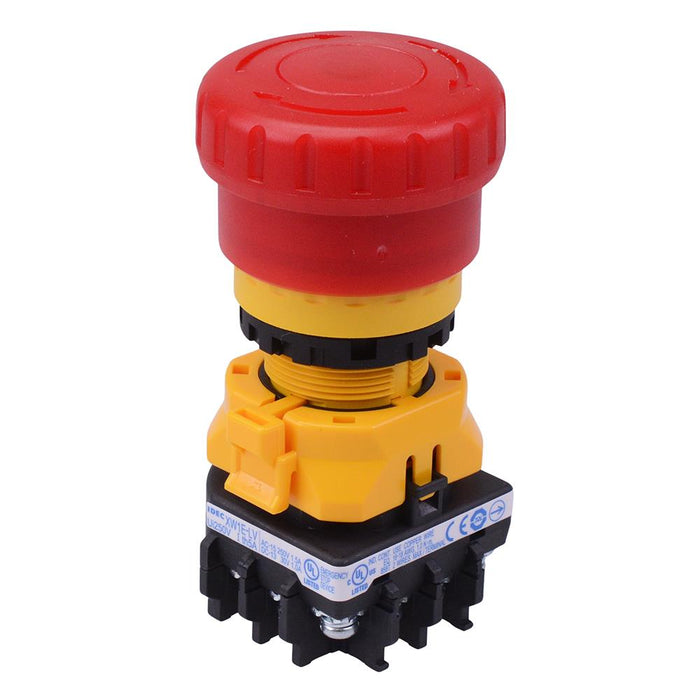

XW1E-LV413Q4M-R 24V illuminated 22mm Emergency Stop Switch 1NO-3NC IDEC
by IDEC
SKU 493241
MPN: XW1E-LV413Q4M-R
Availability:
10 in stock
Original price
£51.79
-
Original price
£51.79
Original price
£51.79
£51.79
-
£51.79
Current price
£51.79
The XW1E-LV413Q4MR is an illuminated 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 3NC-1NO contacts. The switch features a fail-safe design with safe break technology which ensures all NC contacts are open if the contact block is separated. The switch meets major certifications and is suitable for a wide range of safety applications requiring a high quality emergency stop switch.
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
3NC-1NO contacts 22.3mm panel hole diameter IP65 protection level illuminated voltage: 24V AC/DC Screw terminals 40mm mushroom head 5A 250V rating RU, TUV, CE, CCC certification
IDEC X-series switches use "Safe Break Action," a unique reverse energy structure that disconnects normally closed contacts, guaranteeing cut-off even if the emergency switch is damaged or the contact blocks separate.
Specification
| Actuation | Twist Release |
| Back Order Lead Time | 126 Days |
| Contact Configuration | 1NO-3NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 250V |
| Current Rating | 5A |
| Electrical Life | 100,000 Cycles |
| Head Type | Mushroom |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Positions | 2 |
| Operating Temperature | -25°C to +55°C |
| Panel Cut Out | 22.3mm |
| Panel Thickness | 0.8-6mm |
| Product Series | XW |
| Protection Level | IP65 |
| Terminal Type | Screw |
| Voltage Rating | 250V |
